Circuit Inspection

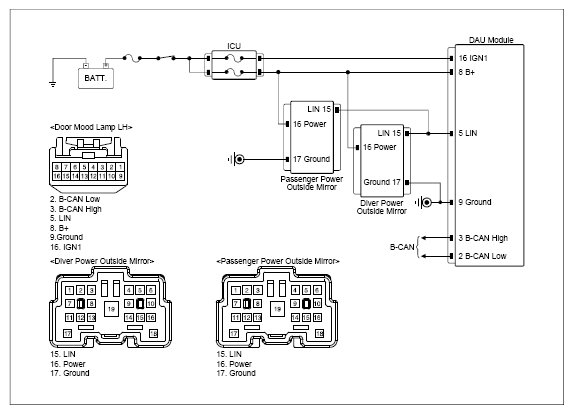

G15719377

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

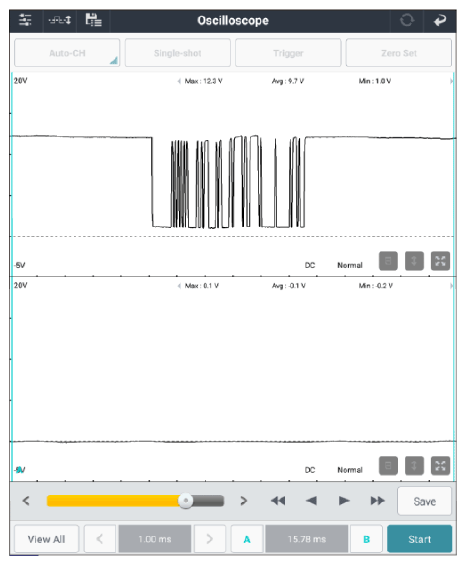

Ignition "ON" & Engine "OFF".	DAU connector	5 (LIN)	Chassis ground	-	Fig.1 below
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	DAU connector	5 (LIN)	Driver power outside mirror connector	15 (LIN)	∞ (infinity)Ω
	DAU connector	8 (power)	Driver power outside mirror connector	16 (power)	∞ (infinity)Ω
	DAU connector	5 (LIN)	Passenger power outside mirror connector	15 (LIN)	∞ (infinity)Ω
	DAU connector	8 (power)	Passenger power outside mirror connector	16 (power)	∞ (infinity)Ω
	Driver power outside mirror connector	16 (power)	Chassis ground	-	B+
	Passenger power outside mirror connector	16 (power)	Chassis ground	-	B+
	Driver power outside mirror connector	15 (LIN)	Chassis ground	-	∞ (infinity)Ω
	Driver power outside mirror connector	16 (power)	Chassis ground	-	∞ (infinity)Ω
	Passenger power outside mirror connector	15 (LIN)	Chassis ground	-	∞ (infinity)Ω
	Passenger power outside mirror connector	16 (power)	Chassis ground	-	∞ (infinity)Ω

G15719378

Courtesy of KIA MOTORS AMERICA, INC.

Good

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.

No Good

Check the LIN communication line for open and short.
Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.
