CAN Communication Circuit Inspection (ADAS L-CAN)
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||

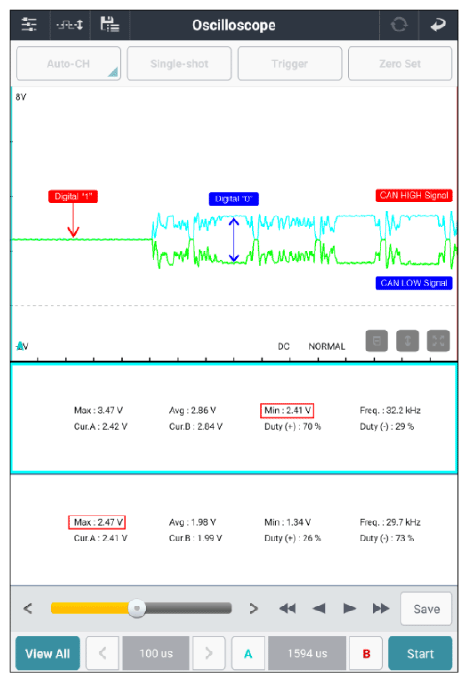

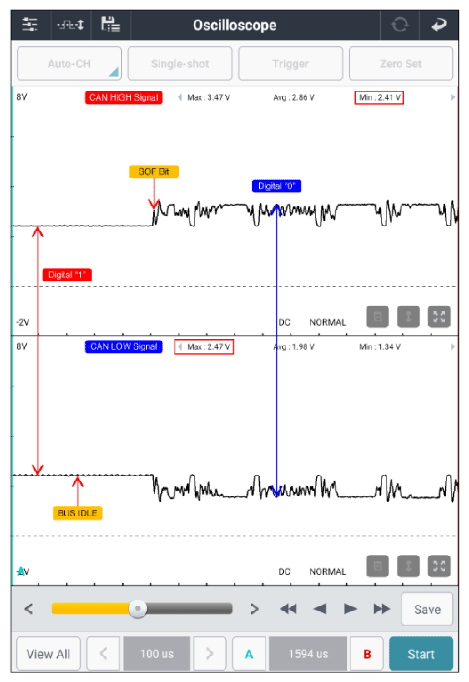

| ADAS L-CAN oscilloscope (FR_CMR) |
|
FR_CMR connector | 9 (ADAS L-CAN high) | Chassis ground | - | Fig.1 to 6 |
| FR_CMR connector | 3 (ADAS L-CAN low) | Chassis ground | - | |||
Good
- Go to "CAN COMMUNICATION CIRCUIT INSPECTION (C-CAN) " procedure.
No Good
- Check for a short circuit between the wiring and the chassis ground.
- Perform repair or replacement as necessary and perform the "VERIFICATION OF REPAIR " procedure.
