Vehicle S/W Management

Inspection Condition Inspection Procedure Specification
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5
G15719195Courtesy of KIA MOTORS AMERICA, INC.

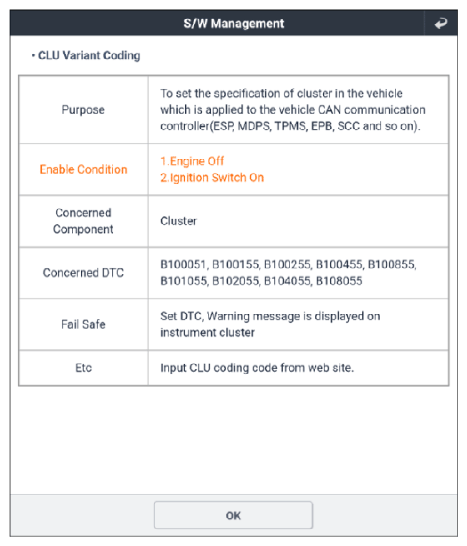

G15719196Courtesy of KIA MOTORS AMERICA, INC.

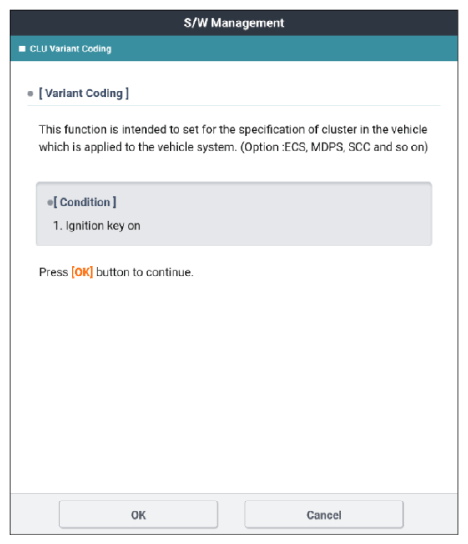

G15719197Courtesy of KIA MOTORS AMERICA, INC.

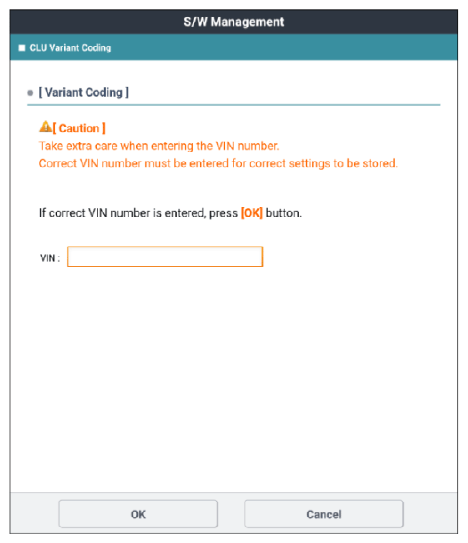

G15719198Courtesy of KIA MOTORS AMERICA, INC.
G15719199Courtesy of KIA MOTORS AMERICA, INC.
