Monitor DTC Status

Inspection Condition Inspection Procedure Specification
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".

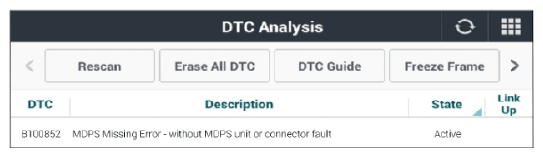

  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
 Fig.1
G15719150Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
