Monitor DTC Status

Inspection Condition	Inspection Procedure	Specification

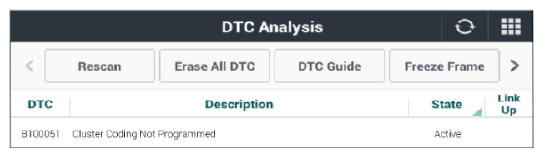

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing the component, perform following "System Inspection" procedure.

History/Pending Fault
