Circuit Inspection

G15723597

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	PDW rear center RH connector	6 (power)	IBU connector	4 (PDW-R power)	Approx. below 1Ω
	PDW rear center RH connector	4 (ground)	Chassis ground	-	Approx. below 1Ω

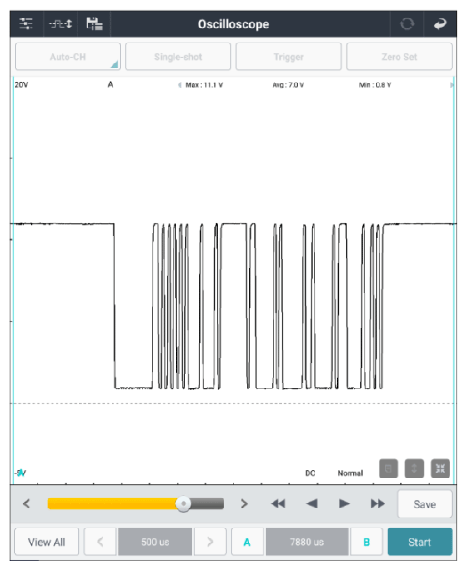

Engine "ON". Gear "R".	PDW rear center RH connector	5 (LIN)	Chassis ground	-	Fig.1 below

G15723598

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.
