Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference

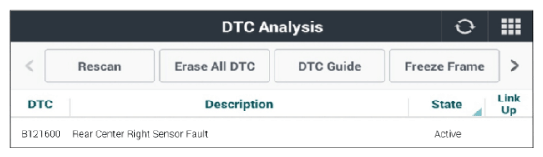

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig.1 below

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault

Fault is intermittent caused by poor contact in "IBU-BCM" or PDW sensor
- PDW rear center right sensor's connector or was repaired and "IBU-BCM" memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
