Circuit Inspection

G15723589

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	PDW rear LH connector 6	(power) IBU	connector 4	(PDW-R power) Approx.	below 1Ω
	PDW rear LH connector 4	(ground) Chassis	ground -	Approx.	below 1Ω

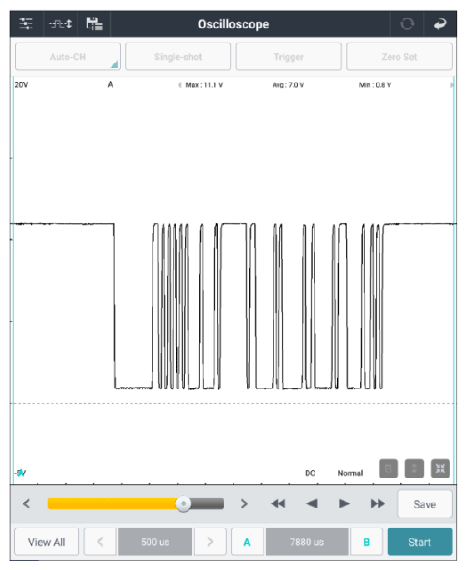

Engine "ON". Gear "R".	PDW rear LH connector	5 (LIN)	Chassis ground	-	Fig. 1

G15723590

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.
