C-CAN Communication Line Inspection
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||
| C-CAN oscilloscope (MDPS) |
|

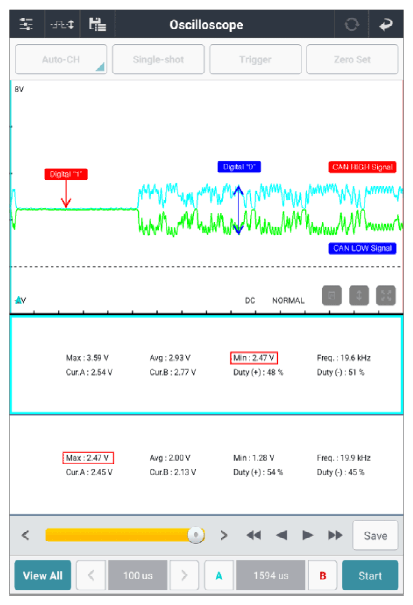

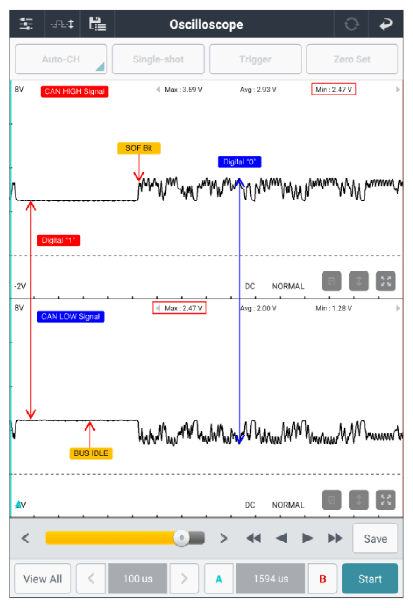

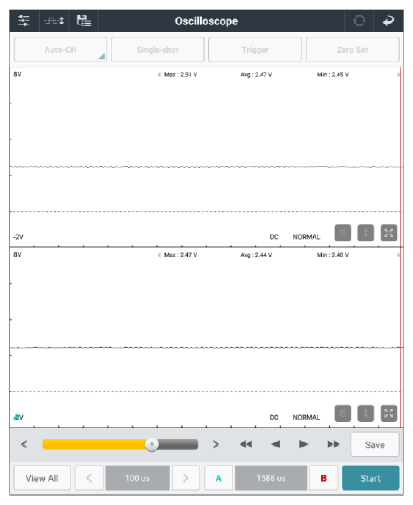

MDPS connector | 7 (C-CAN high) | Chassis ground | - | Fig.1 to 6 |
| MDPS connector | 8 (C-CAN low) | Chassis ground | - | |||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary and then Go to "VERIFICATION OF REPAIR ".
- Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
