Removal & Installation: Removal

  1. Remove the steering column shroud panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

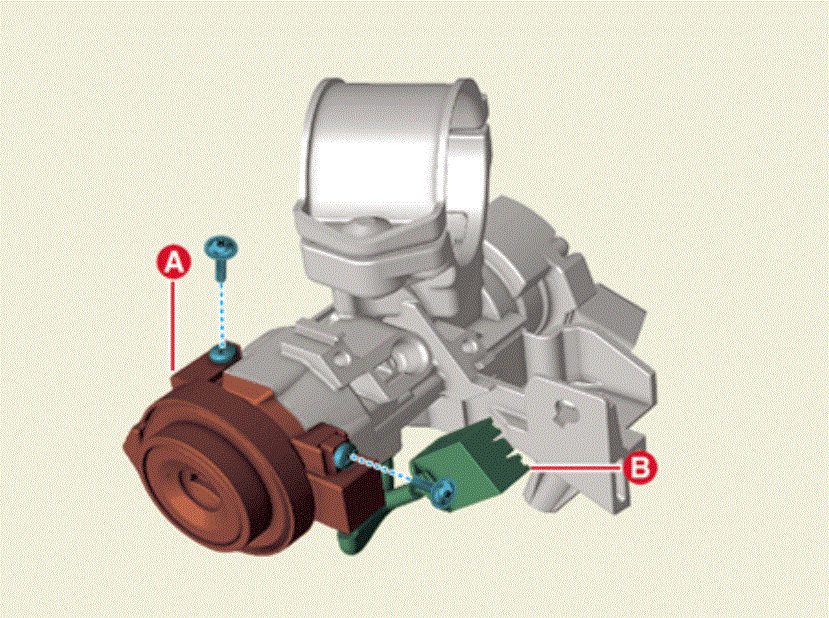

  2. Remove the antenna coil (A) by removing the screws after disconnecting the coil antenna connector (B).
G15710182Courtesy of KIA MOTORS AMERICA, INC.
