Glove Box Housing

Disconnect the battery negative (-) terminal and the service interlock connector.

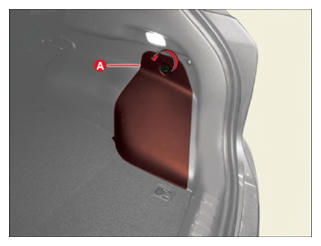

Remove the upper battery cover (A) after rotating valve in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

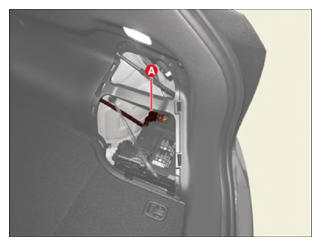

Disconnect the auxiliary 12 V negative (-) battery terminal (A) after loosening the nut.

Tightening torque :

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

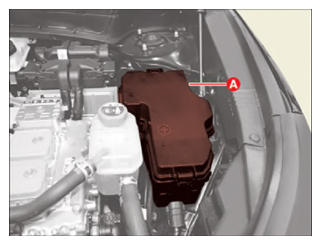

Remove the engine room junction box cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

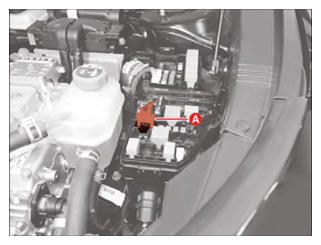

Disconnect the service interlock connector (A).

WARNING: Wait more than 3 minutes for capacitor in the inverter to be discharged completely after disconnecting the high voltage service interlock connector.

Courtesy of KIA MOTORS AMERICA, INC.

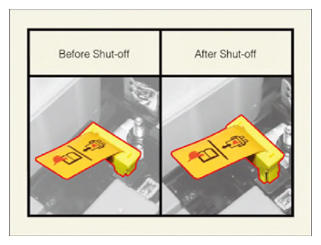

NOTE: The high voltage service interlock connector cannot be completely removed.

Courtesy of KIA MOTORS AMERICA, INC.

Remove the glove box.
Remove the crash pad side cover [Passenger's side].
(Refer to Crash Pad - "CRASH PAD SIDE COVER ")

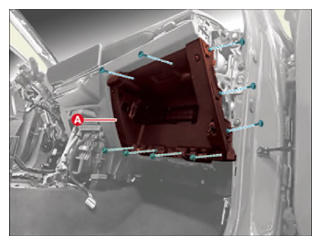

Remove the glove box housing (A) after removing the screws and nuts.
Tightening torque:

16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

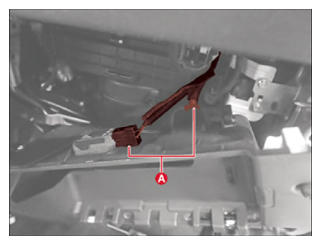

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
