Removal And Installation: Removal

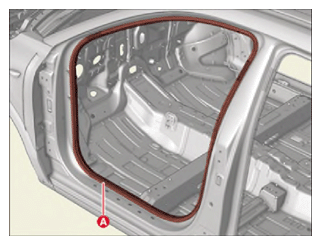

Remove the front door body side weatherstrip (A).

Courtesy of KIA MOTORS AMERICA, INC.

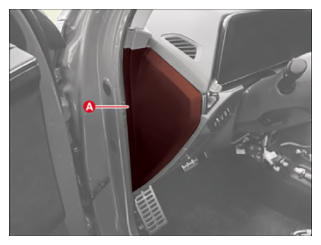

Remove the crash pad side cover (A).
[Driver's side]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

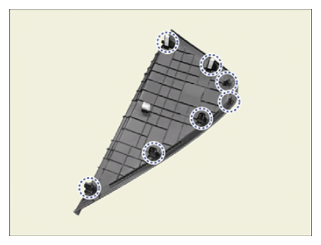

Clip position: Dotted circles

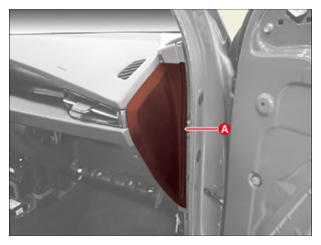

[Passenger's side]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

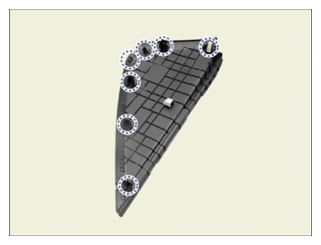

Clip position: Dotted circles
