Crash Pad Lower Panel (Passenger's side)
- Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Remove the center fascia panel.
(Refer to Crash Pad - "CENTER FASCIA PANEL ")
- Remove the glove box housing.
(Refer to Crash Pad - "GLOVE BOX ")
- Remove the crash pad center garnish.
(Refer to Crash Pad - "CRASH PAD GARNISH ")
- Remove the audio/AVNT keyboard.
(Refer to Body Electrical System - "AUDIO/AVNT KEYBOARD ")

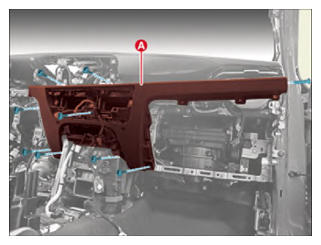

- Remove the crash pad lower panel [Passenger's side] (A) after removing the screws.
Information

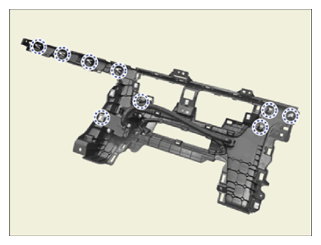

Clip position: Dotted circles

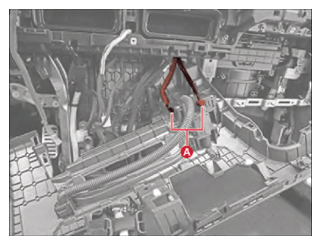

- Disconnect the connectors (A).
