Crash Pad Center Garnish

  1. Remove the cluster.

    (Refer to Body Electrical System -  "REMOVAL AND INSTALLATION ")

  2. Remove the display audio monitor.

    (Refer to Body Electrical System -  "AUDIO/AVNT MONITOR ")

  3. Remove the crash pad switch panel.

    (Refer to Crash Pad -  "CRASH PAD SWITCH PANEL ")

  4. Remove the cluster fascia panel.

    (Refer to Crash Pad -  "CLUSTER FASCIA PANEL ")

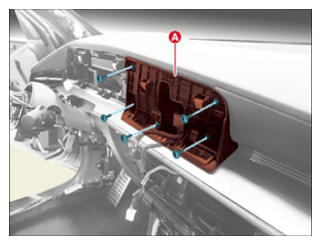

  5. Remove the display rear cover (A) after removing the screws.
    G15789788Courtesy of KIA MOTORS AMERICA, INC.

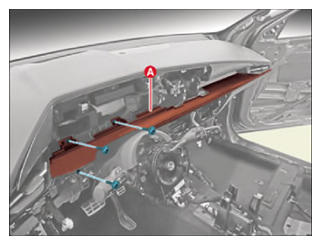

  6. Remove the crash pad center garnish (A) after removing the screws.
    G15789789Courtesy of KIA MOTORS AMERICA, INC.

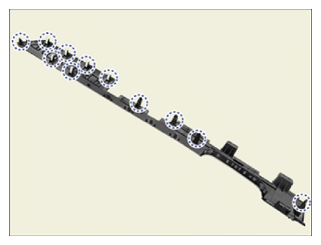

    G15789790Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:  Dotted circles
