Removal And Installation: Removal

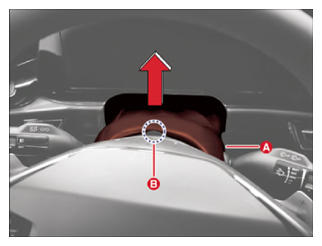

  1. Remove the cluster fascia panel (A) in the direction of the arrow using the service hole (B).
    G15789812Courtesy of KIA MOTORS AMERICA, INC.
    G15789813Courtesy of KIA MOTORS AMERICA, INC.

    Information

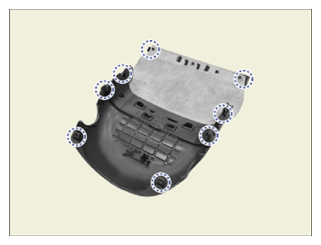

    Clip position:  Dotted circles
