[Crash Pad Center Garnish]

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

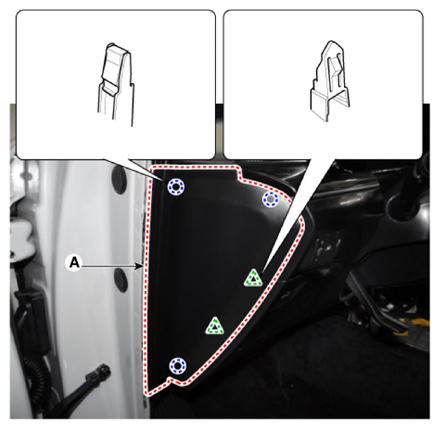

Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting screw, using a flat-tip screwdriver and remove the crash pad center garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips (or pin-type retainers).
