3rd Seat Power Folding Unit

Remove the 3rd seat assembly.
(Refer to Rear Seat (3rd) - " REAR SEAT ASSEMBLY ")

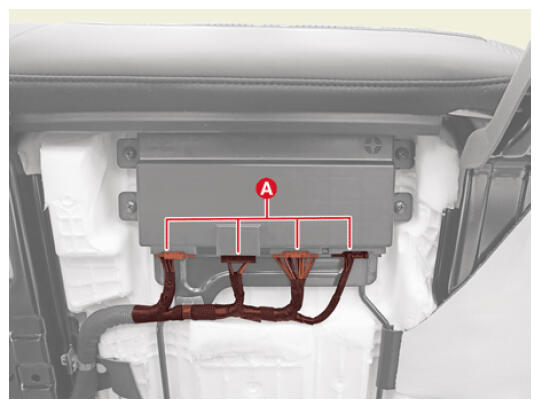

Disconnect the 3rd seat power folding unit connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

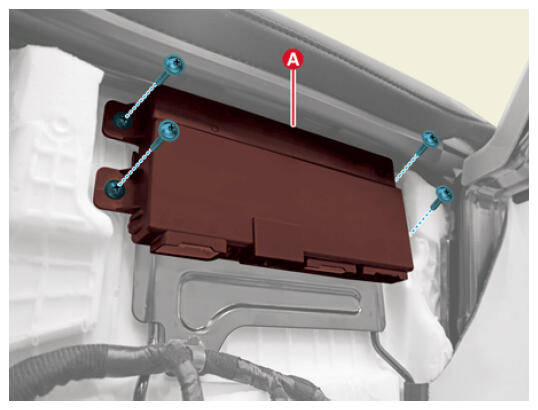

Remove the 3rd seat power folding unit (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.
