Removal And Installation: Removal

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". Refer to HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION . If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Remove the 3rd seat assembly.
(Refer to Rear Seat (3rd) - " REAR SEAT ASSEMBLY ")

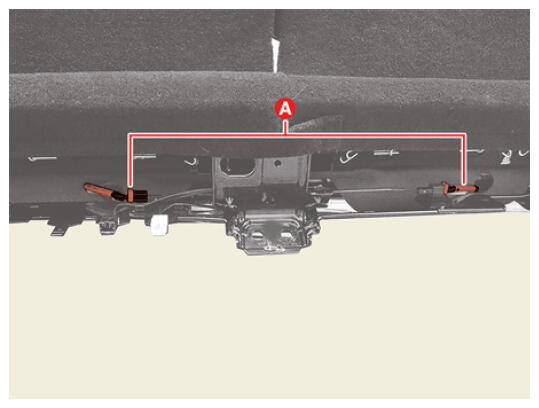

Disconnect the 3rd seat cushion connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

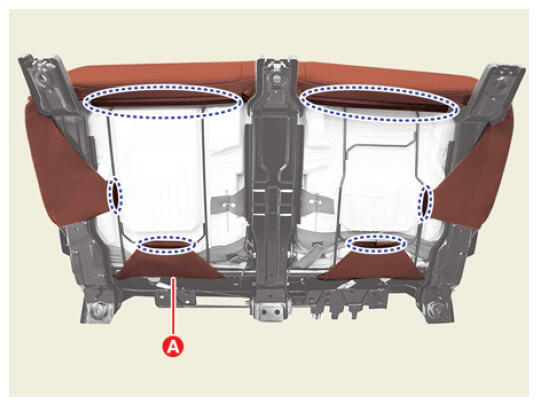

Remove the 3rd seat cushion protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

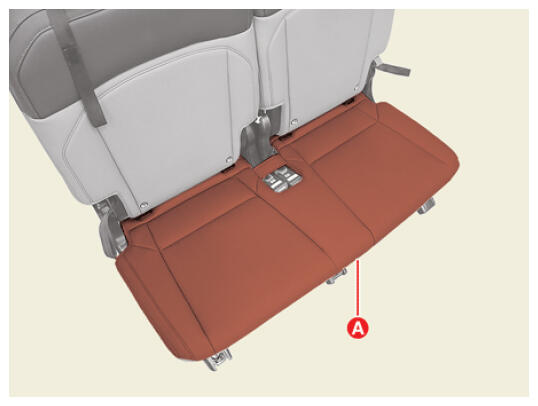

Remove the 3rd seat cushion assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
