Removal And Installation: Removal
WARNING:
- When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
- When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". Refer to HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION . If not, it may cause serious accidents due to electric shock or short circuit.
- When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
- Remove the 3rd seat back cover assembly.
(Refer to Rear Seat (3rd) - " REAR SEAT BACK COVER ASSEMBLY ")

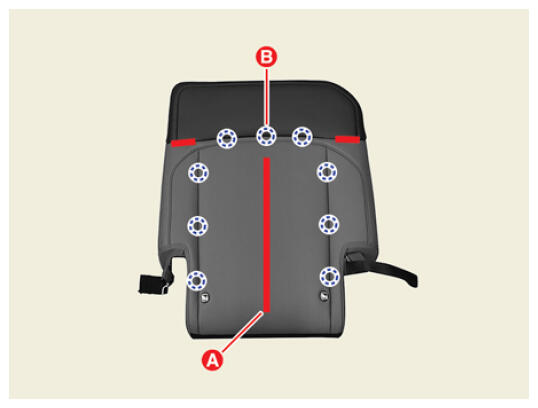

- Remove the Velcro tapes (A) and the hog ring clips (B).

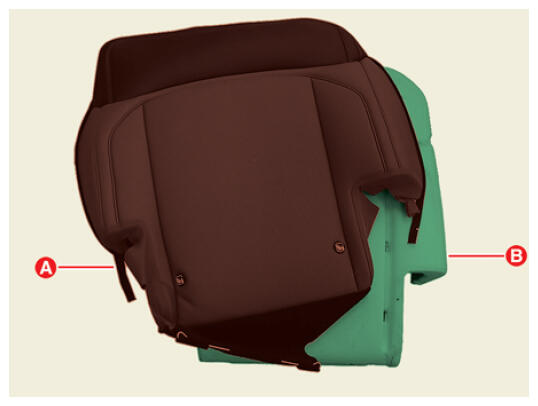

- Remove the 3rd seat back cover (A) and back pad (B).
