Removal And Installation: Removal

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". Refer to HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION . If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Remove the 3rd seat cushion cover assembly.
(Refer to Rear Seat (3rd) - " REAR SEAT CUSHION COVER ASSEMBLY ")

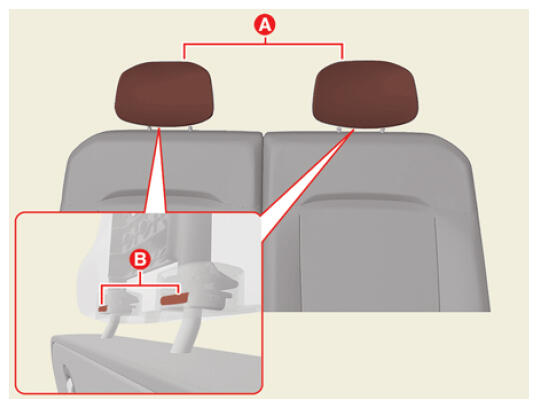

Remove the headrest (A) by pressing the hook (B).

Courtesy of KIA MOTORS AMERICA, INC.

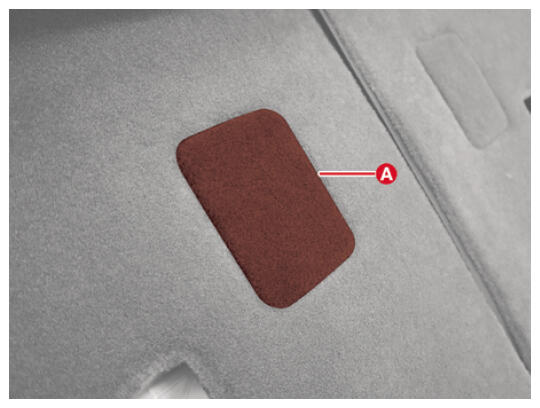

Remove the 3rd seat back protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

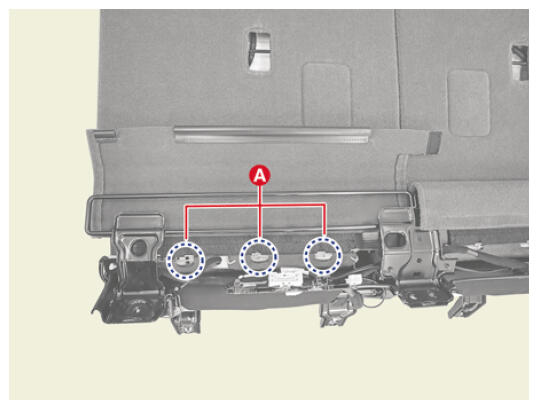

Remove the 3rd seat back hog-ring clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

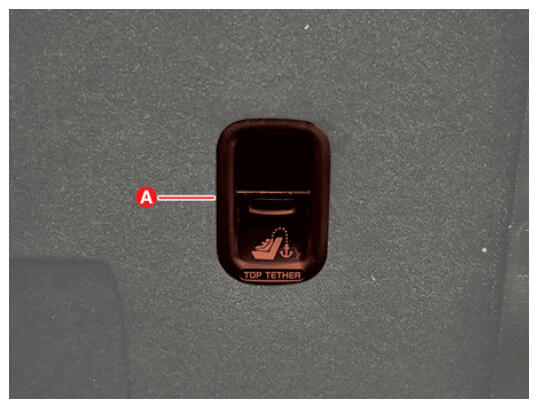

Remove the tether garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

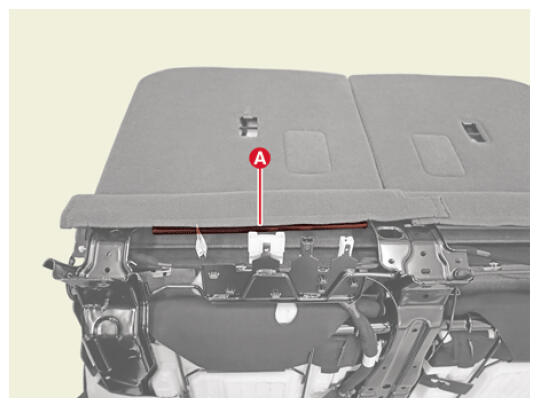

Remove the 3rd seat handle cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

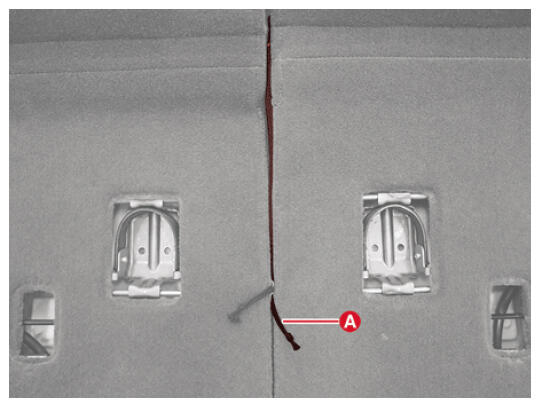

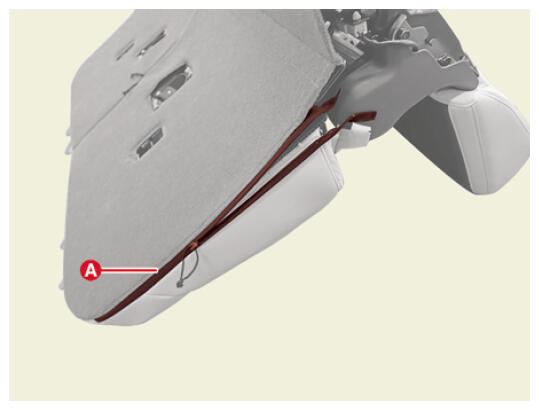

Open the 3rd seat back zipper (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

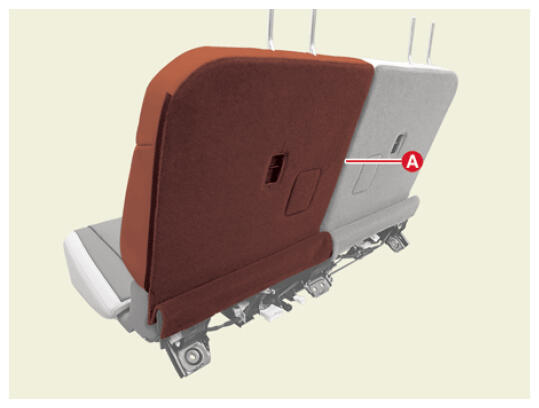

Remove the 3rd seat back cover assembly (A) from the seat back frame.

Courtesy of KIA MOTORS AMERICA, INC.
