3rd Seat: Power

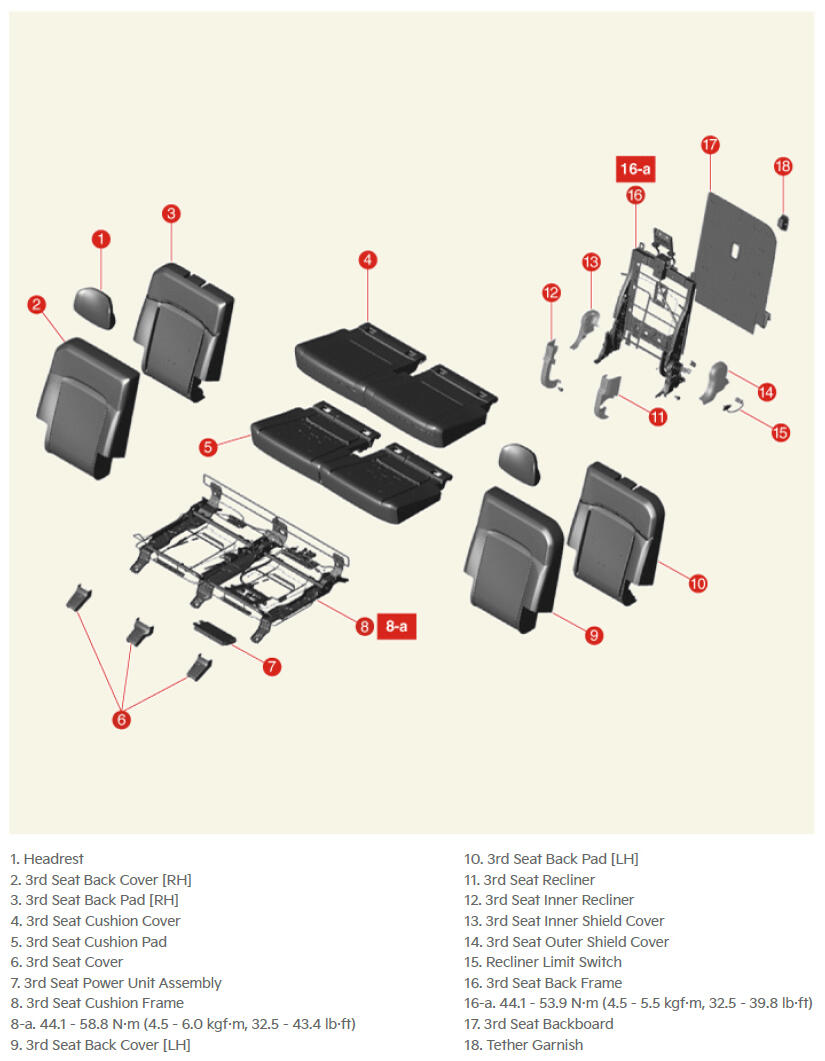

Fig 1: 3rd Seat Components Location With Torque Specifications (Power)

G16894543

Courtesy of KIA MOTORS AMERICA, INC.
