6P Relaxation

1. Remove the 2nd seat assembly.

   (Refer to Rear Seat (2nd) - " REAR SEAT ASSEMBLY  ")

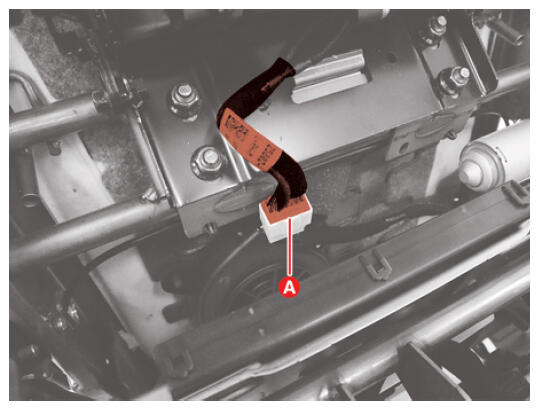

2. Disconnect the 2nd seat leg rest connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

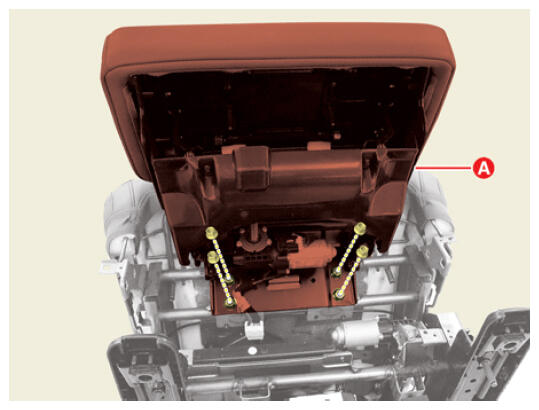

3. Remove the 2nd seat leg rest assembly (A) after removing the nuts.

   Tightening torque  :

   19.6 - 32.4 N.m (2.0 - 3.3 kgf.m, 14.5 - 23.9 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

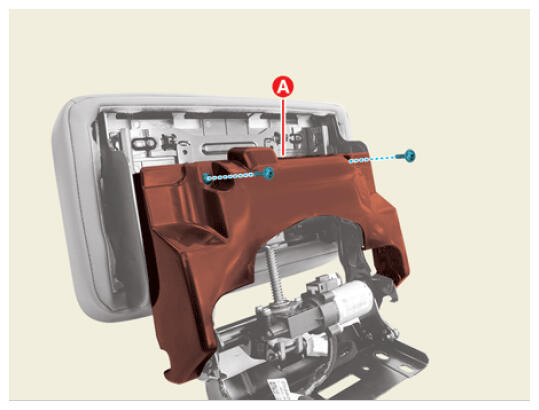

4. Remove the 2nd row seat leg rest extension garnish (A) after removing the screws.

   Courtesy of KIA MOTORS AMERICA, INC.

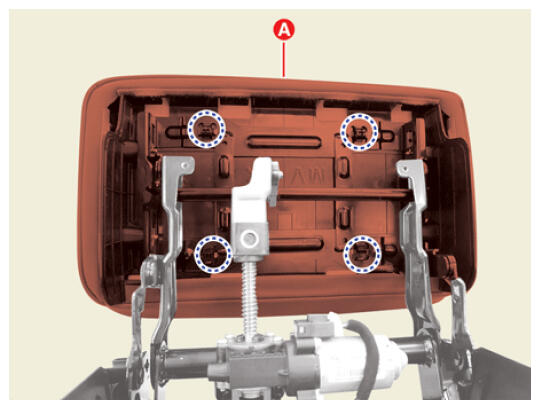

5. Remove the 2nd row seat leg rest (A) after removing the clips.

   Courtesy of KIA MOTORS AMERICA, INC.

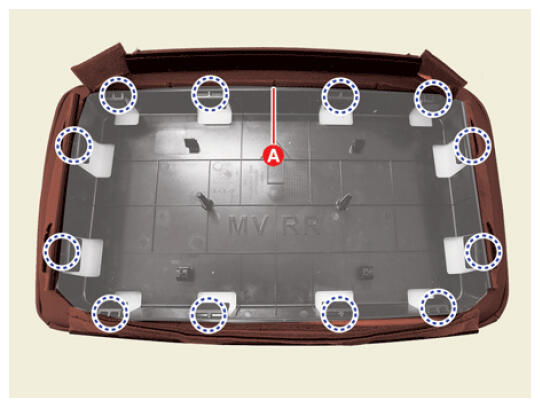

6. Separate the 2nd seat leg rest pad and the 2nd seat leg rest cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position  :
