6P Relaxation

1. Remove the 2nd seat back and cushion cover assembly [Driver's side].

   (Refer to Rear Seat (2nd) - " REAR SEAT BACK COVER ASSEMBLY  ")

   (Refer to Rear Seat (2nd) - " REAR SEAT CUSHION COVER ASSEMBLY  ")

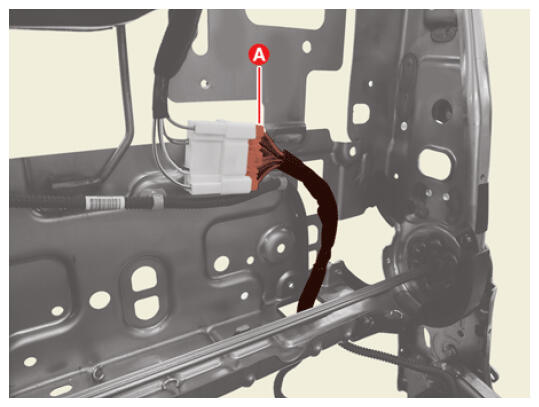

2. Disconnect the rear seat extension connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

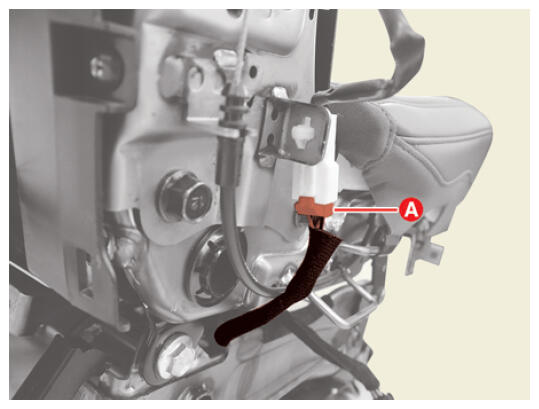

3. Disconnect the 2nd seat folding switch connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

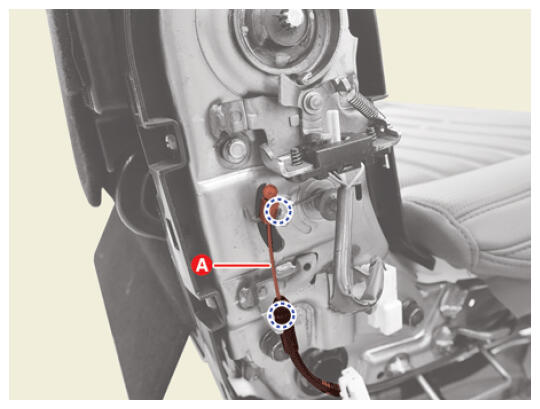

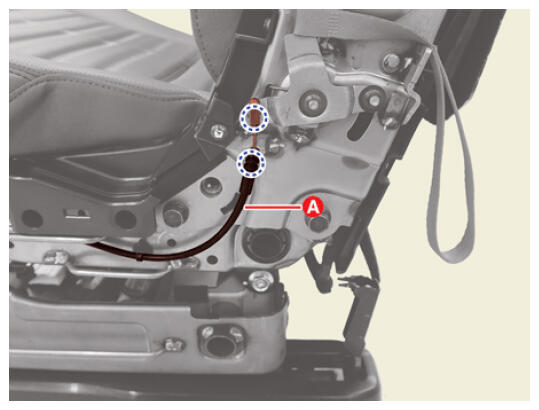

4. Separate the 2nd seat folding cables (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

   Clip position  :

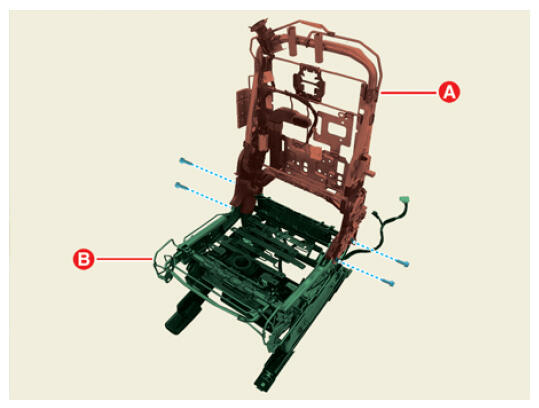

5. Separate the 2nd seat back frame (A) and the 2nd seat cushion frame (B) after removing the bolts.

   Tightening torque  :

44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
