6P Relaxation

  1. Remove the 2nd seat cushion cover assembly.

    (Refer to Rear Seat (2nd) - " REAR SEAT CUSHION COVER ASSEMBLY  ")

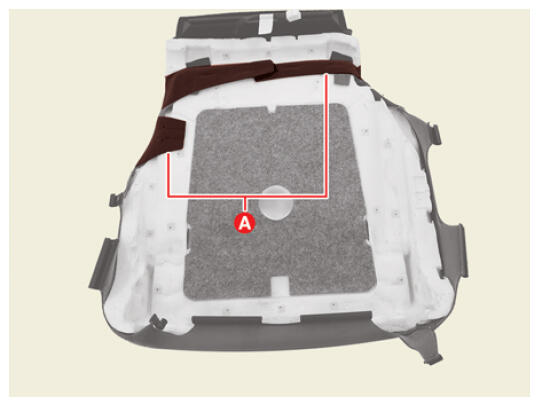

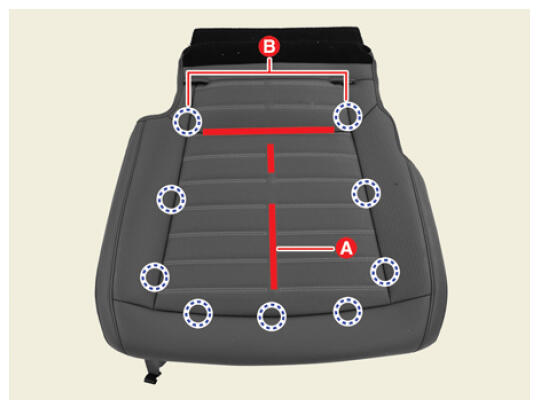

  2. Remove the Velcro tapes (A) and hog ring clips (B).
    G16894364Courtesy of KIA MOTORS AMERICA, INC.
    G16894365Courtesy of KIA MOTORS AMERICA, INC.

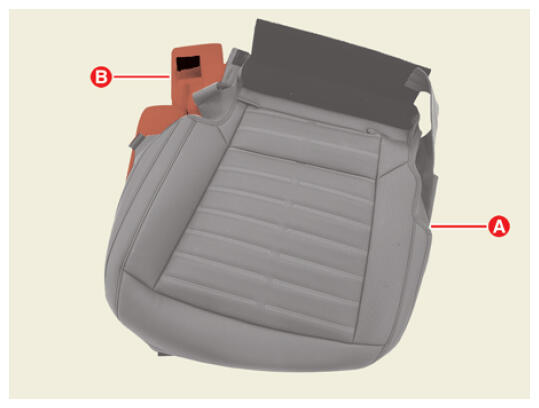

  3. Separate the 2nd seat cushion cover (A) and the 2nd seat cushion pad (B).
G16894366Courtesy of KIA MOTORS AMERICA, INC.
