6P Relaxation

  1. Remove the 2nd seat shield cover.

    (Refer to Rear Seat (2nd) - " REAR SEAT SHIELD COVER  ")

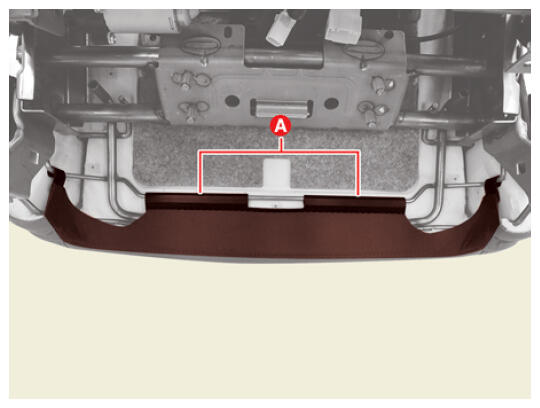

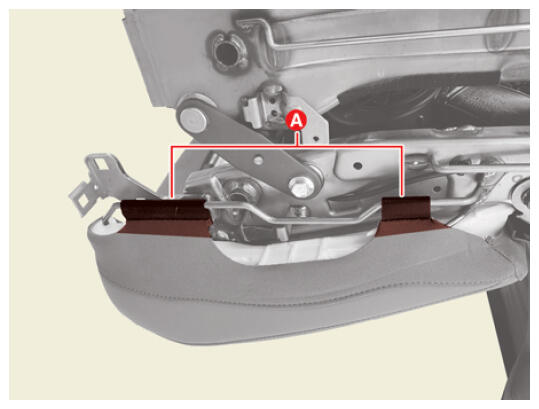

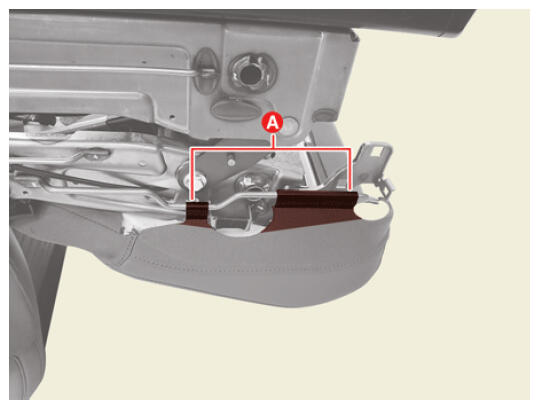

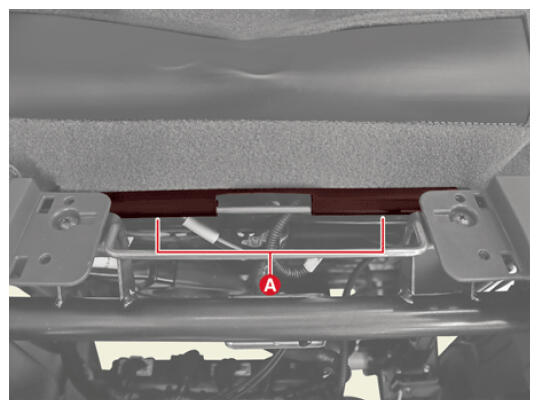

  2. Remove the seat cushion protectors (A).
    G16894385Courtesy of KIA MOTORS AMERICA, INC.
    G16894386Courtesy of KIA MOTORS AMERICA, INC.
    G16894387Courtesy of KIA MOTORS AMERICA, INC.
    G16894388Courtesy of KIA MOTORS AMERICA, INC.

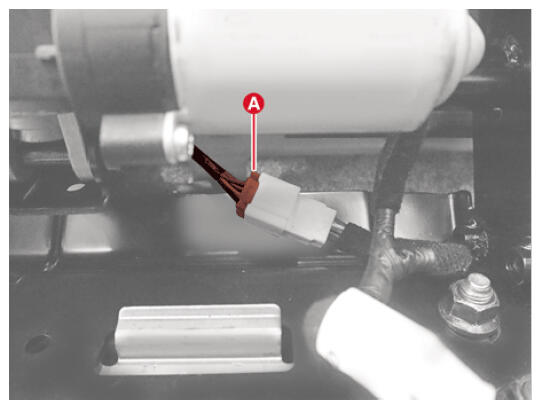

  3. Disconnect the 2nd seat vibration unit connector (A).
    G16894389Courtesy of KIA MOTORS AMERICA, INC.

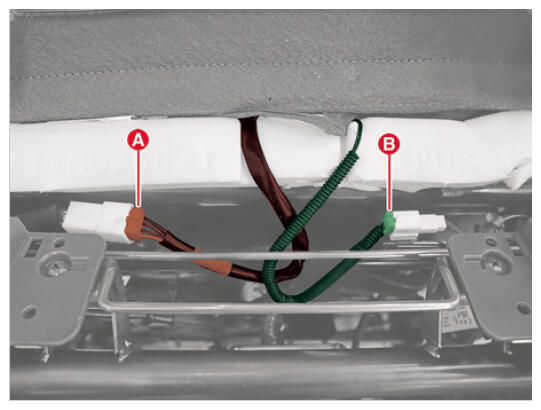

  4. Disconnecting the 2nd seat heating wire connector (A) and the seat belt reminder mat connector (B).
    G16894390Courtesy of KIA MOTORS AMERICA, INC.

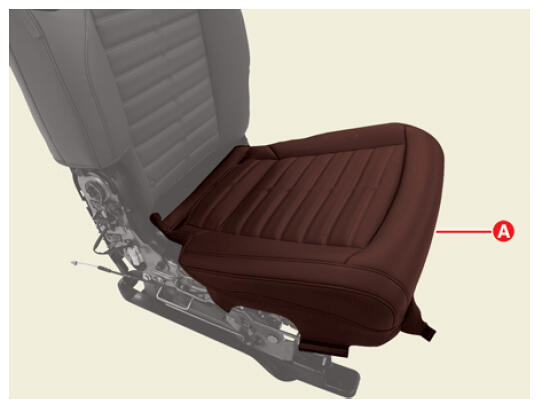

  5. Remove the 2nd seat cushion assembly (A) from the 2nd seat cushion frame.
G16894391Courtesy of KIA MOTORS AMERICA, INC.
