6P Relaxation

Turn the IG OFF, separate the auxiliary battery (12 V) (-) terminal, and disconnect the high voltage service interlock connector.

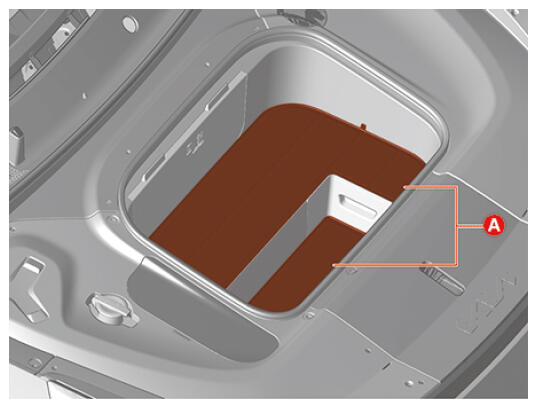

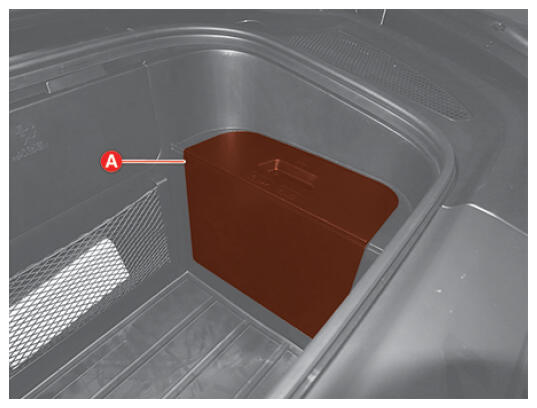

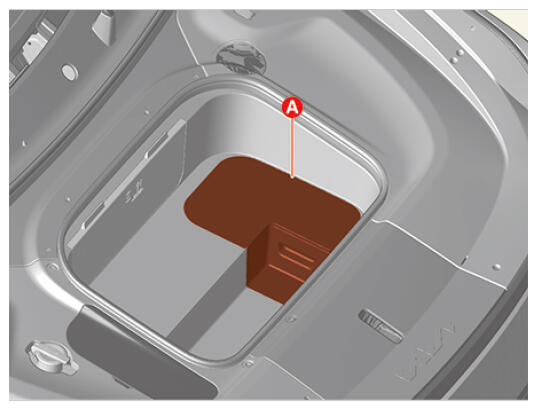

Remove the front trunk pad (A).

[2WD]

Courtesy of KIA MOTORS AMERICA, INC.

[4WD]

Courtesy of KIA MOTORS AMERICA, INC.

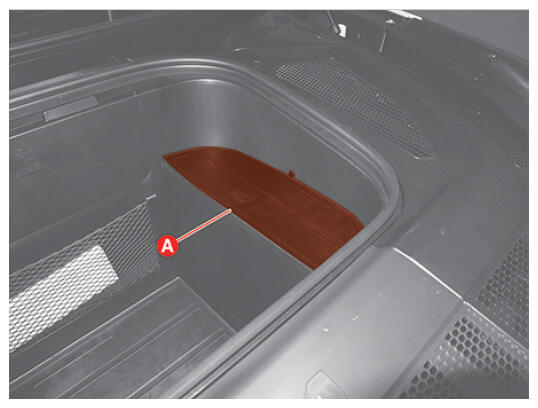

Remove the auxiliary battery (12 V) service cover (A).

[2WD]

Courtesy of KIA MOTORS AMERICA, INC.

[4WD]

Courtesy of KIA MOTORS AMERICA, INC.

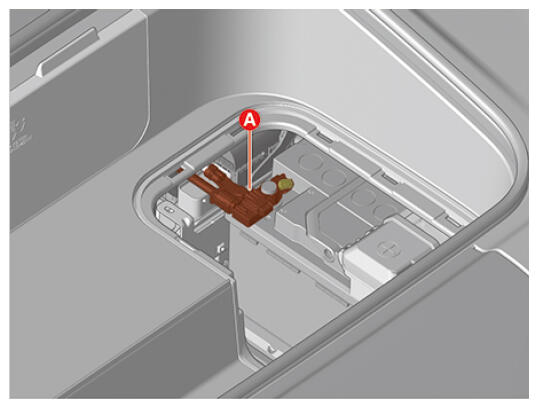

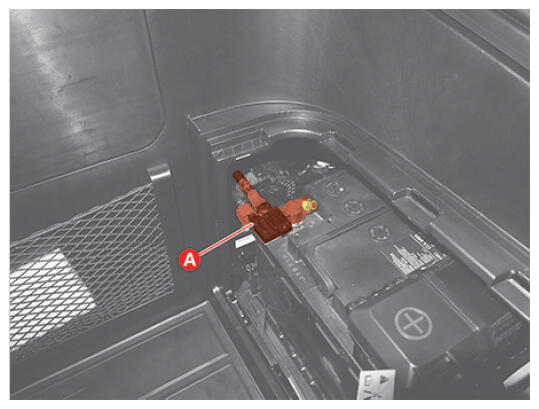

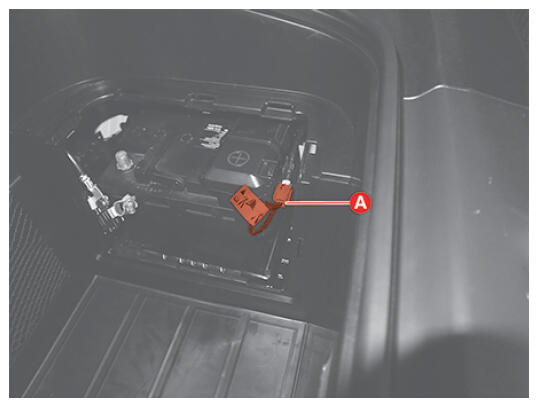

Disconnect the auxiliary battery (12 V) negative (-) terminal (A) after loosening the nut.

Tightening torque :

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

[2WD]

Courtesy of KIA MOTORS AMERICA, INC.

[4WD]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

WARNING: Wait more than 5 minutes for capacitor of the high voltage battery system to be discharged completely.

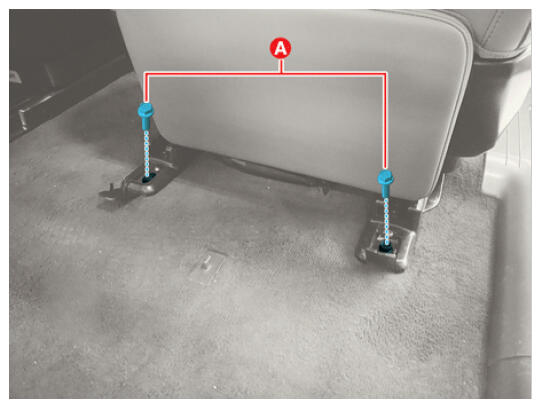

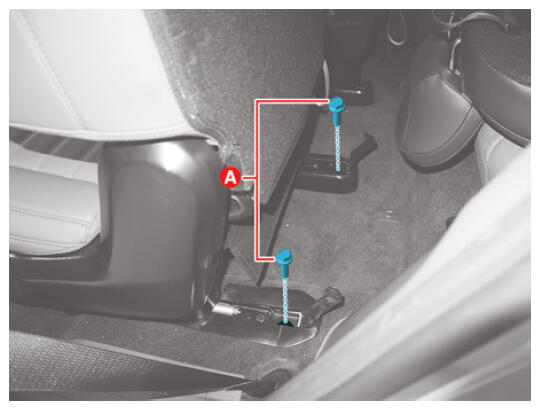

Remove the 2nd seat assembly bolts (A).
Tightening torque :

44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

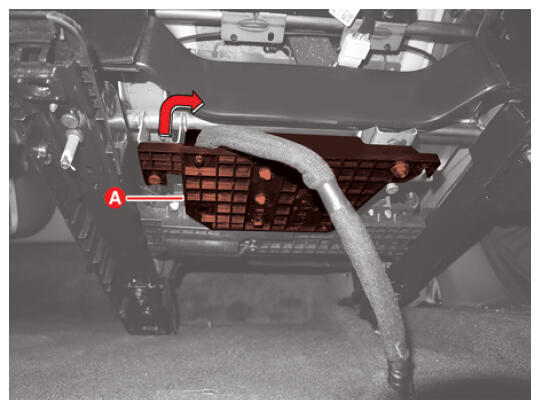

Open the connector bracket (A) in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

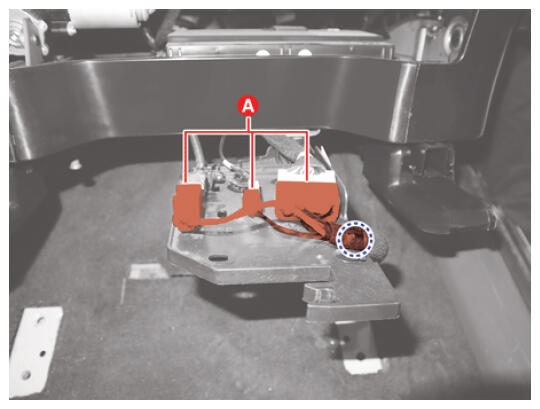

Disconnect the seat connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position :

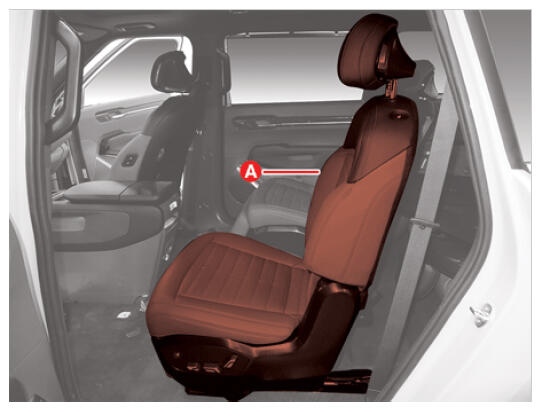

Remove the 2nd seat assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
