6P Relaxation

Remove the 2nd seat shield cover.
(Refer to Rear Seat (2nd) - " REAR SEAT SHIELD COVER ")
Remove the rear seat back folding switch.
(Refer to Rear Seat (2nd) - " REAR SEAT BACK SWITCH ")

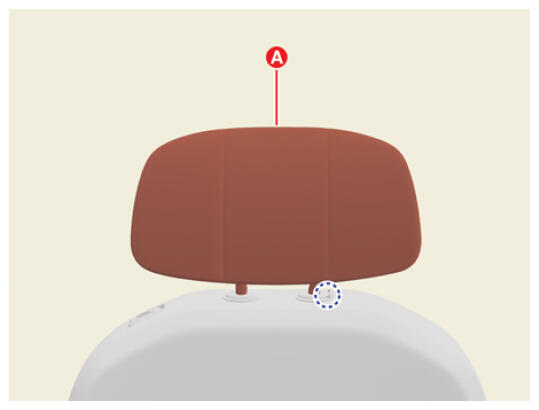

Remove the headrest (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position :

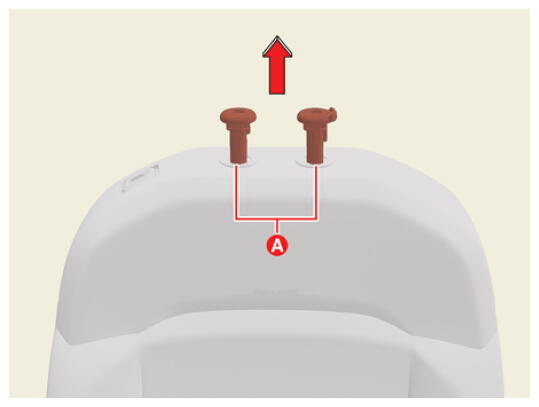

Remove the headrest guide (A) in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

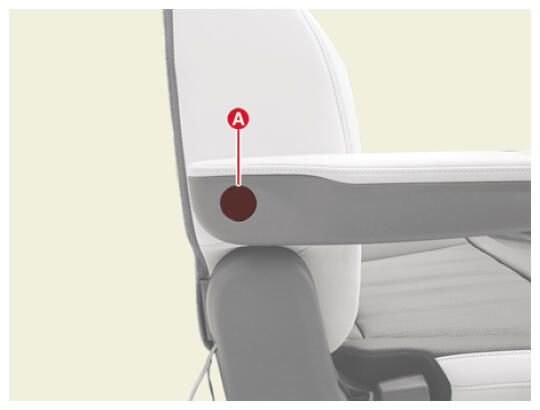

Remove the seat armrest bolt cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

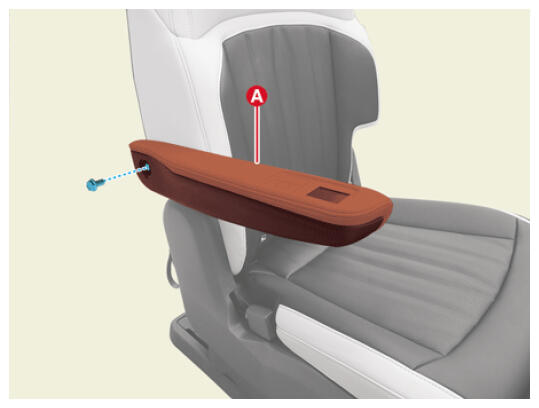

Remove the seat armrest (A) after removing the bolt.
Tightening torque :

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the massage controller connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

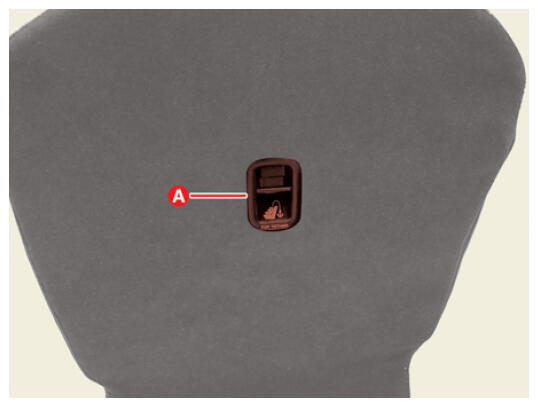

Remove the tether garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

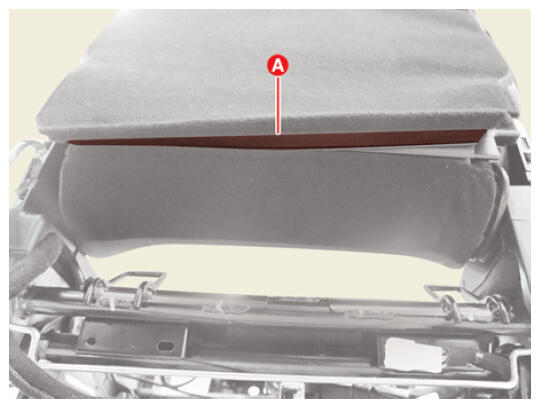

Remove the 2nd seat back protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

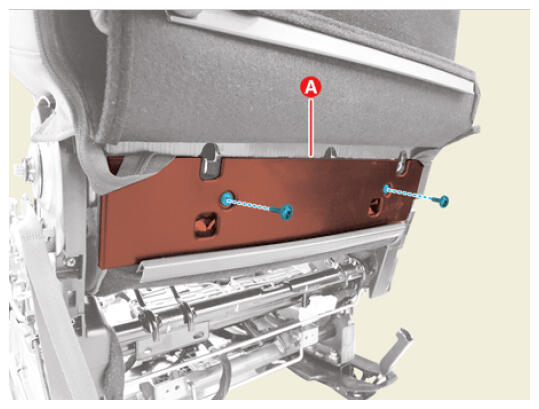

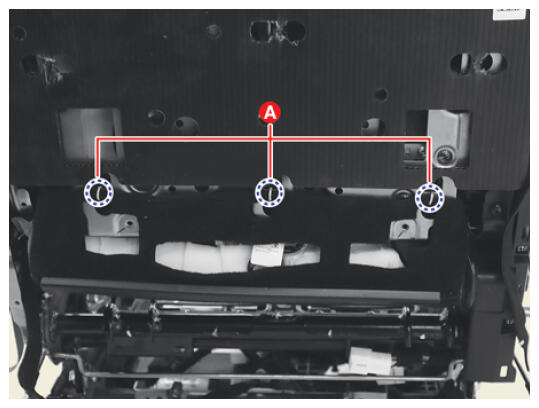

Remove the rear back cover (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the hog ring clips (A).

Courtesy of KIA MOTORS AMERICA, INC.
Lift up the 2nd seat back zipper (A).

Courtesy of KIA MOTORS AMERICA, INC.

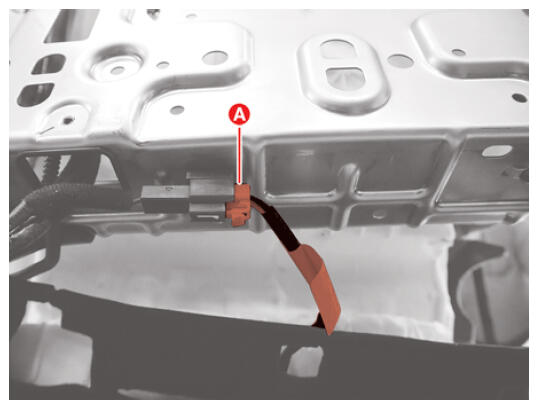

Disconnect the 2nd seat back heating wire connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

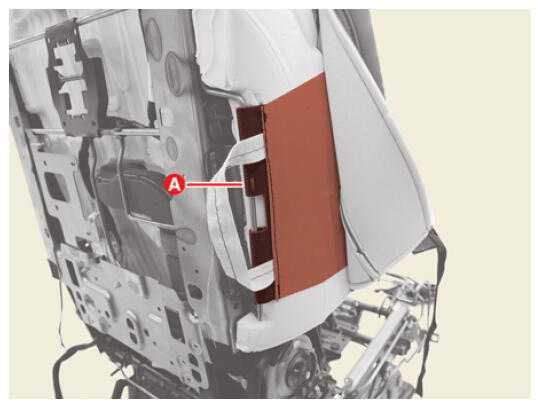

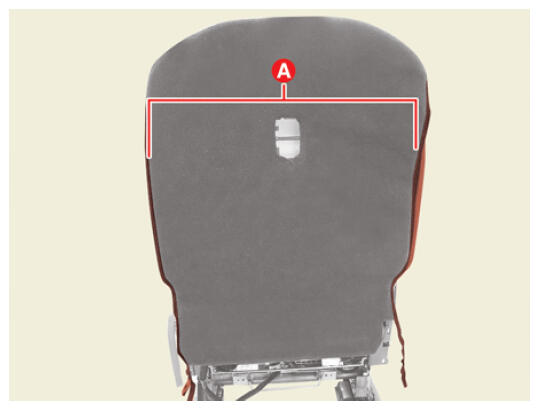

Remove the 2nd seat back cover assembly protector (A).

Courtesy of KIA MOTORS AMERICA, INC.

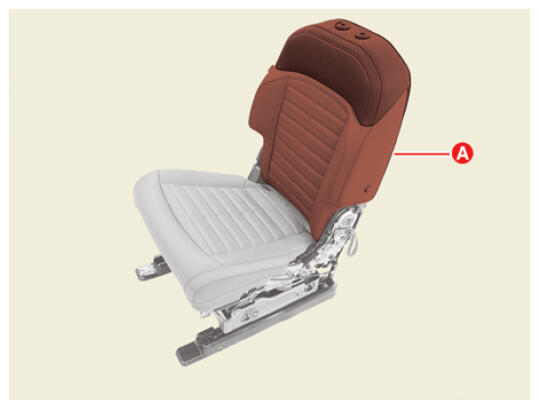

Remove the 2nd seat back assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

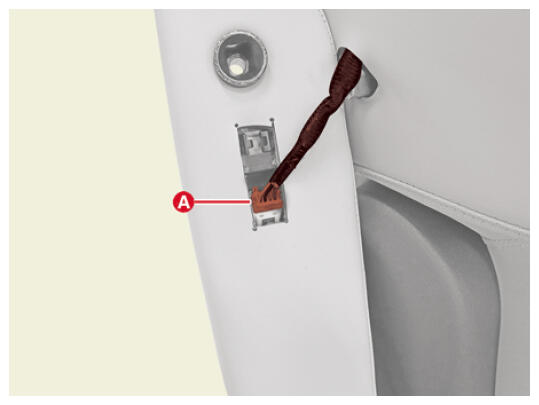

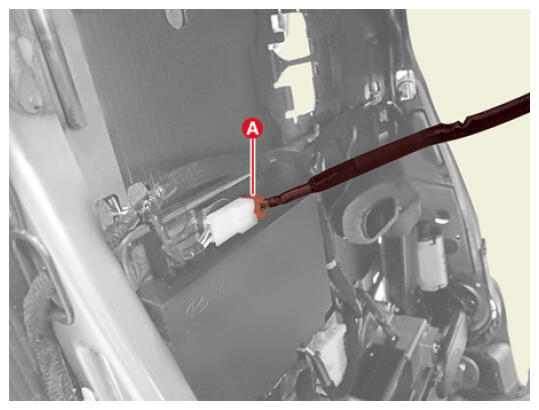

Disconnect the vibration unit connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
