Home >> Kia >> 2024 >> EV9 GT-Line >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Ultra Wide Band BLUETOOTH Low Energy-Master Diagnosis >> DTC B18D2-00: CAN Time-Out UWB_FR (Front Right) >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

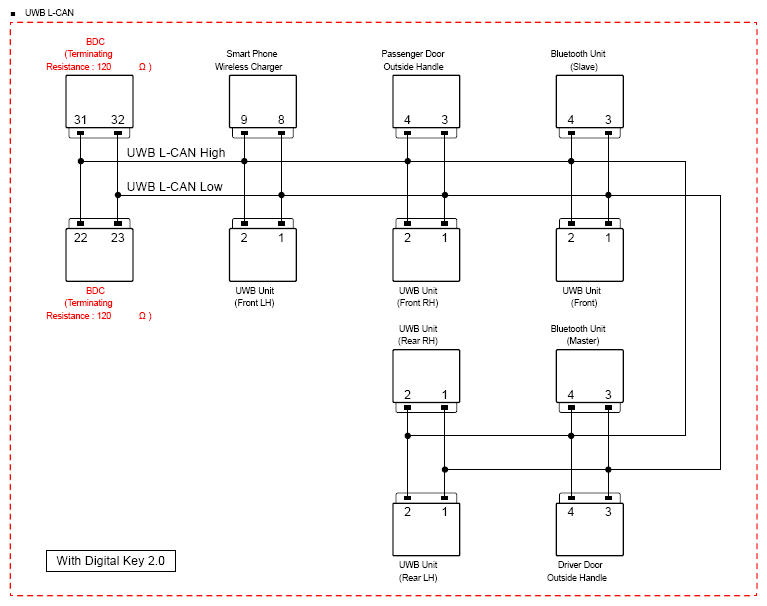

G16873163Courtesy of HYUNDAI MOTOR AMERICA
G16873164Courtesy of HYUNDAI MOTOR AMERICA
