Home >> Kia >> 2024 >> EV9 GT-Line >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Ultra Wide Band BLUETOOTH Low Energy-Master Diagnosis >> DTC B18D1-00: CAN Time-Out UWB_FL (Front Left) >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

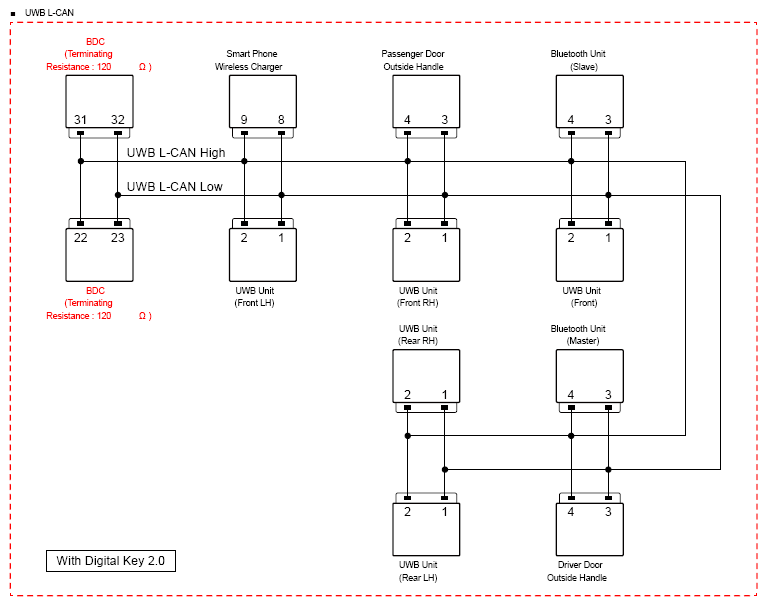

G16873152Courtesy of HYUNDAI MOTOR AMERICA
G16873153Courtesy of HYUNDAI MOTOR AMERICA
