Removal And Installation: Installation

1. Install the wheel and tire (A) after tightening the nuts.

Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

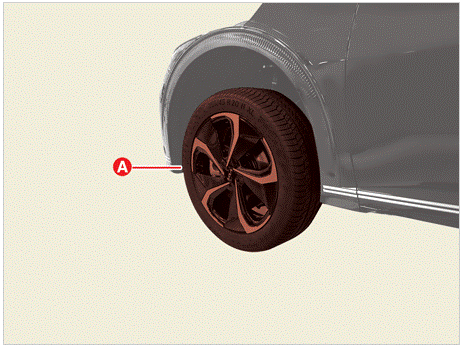

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

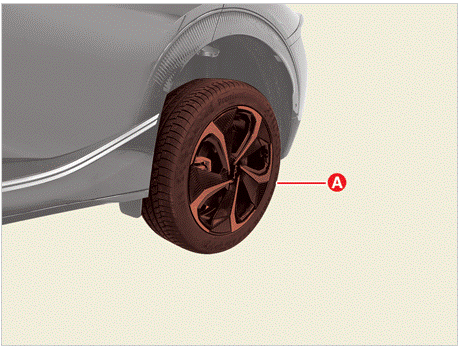

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

• Be careful not to damage the hub bolts (A) when installing the wheels and tires.

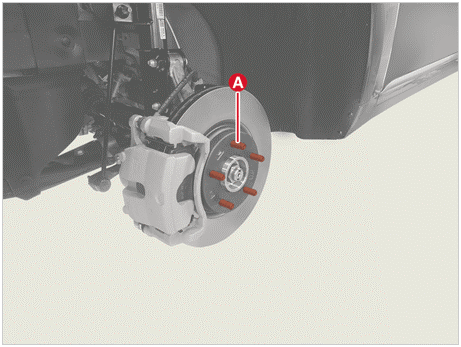

  [Front]

  Courtesy of KIA MOTORS AMERICA, INC.

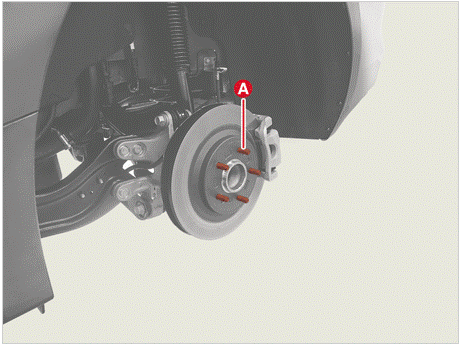

  [Rear]

  Courtesy of KIA MOTORS AMERICA, INC.

• Tighten the hub nuts as follows.

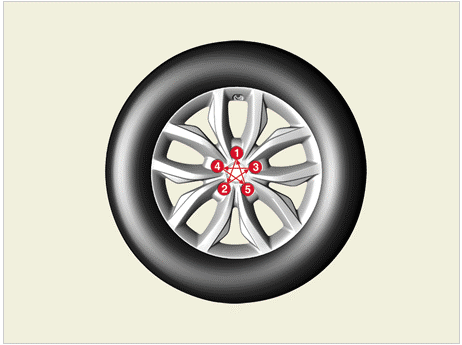

  Fig 1: Hub Nuts Tightening Sequence

  Courtesy of KIA MOTORS AMERICA, INC.

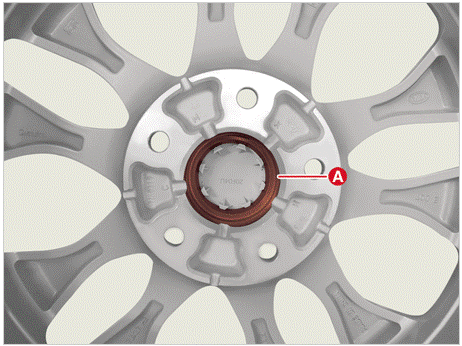

• Clean the wheel side (A) and hub side (B) rust or debris prior to installing the wheels and tires.

Courtesy of KIA MOTORS AMERICA, INC.

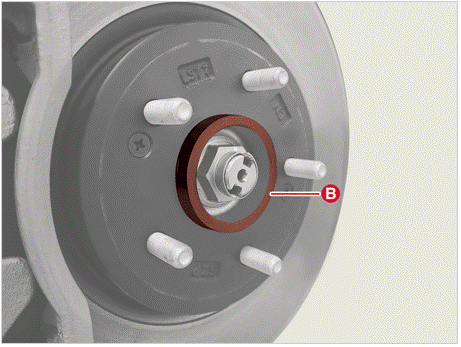

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

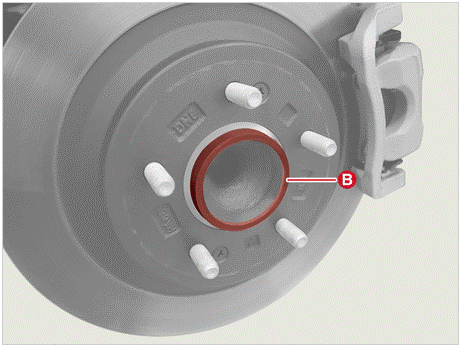

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.
