Rear Upper Arm - Rear
- Remove the rear wheel and tires.
(Refer to Tires/Wheels - " WHEEL ")

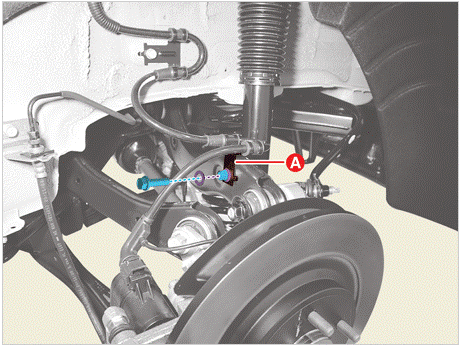

- Separate the rear wheel speed sensor bracket (A) after removing the bolt and washer.
Tightening torque:
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)
NOTE:- Install the transmission jack and lift up the parts to prevent the bolts and nuts from damage when installing or removing.
- Mark and remove all bolts and nuts to prevent incorrectly positioned installation.
Information
Hold the bolt and remove or install the nut.

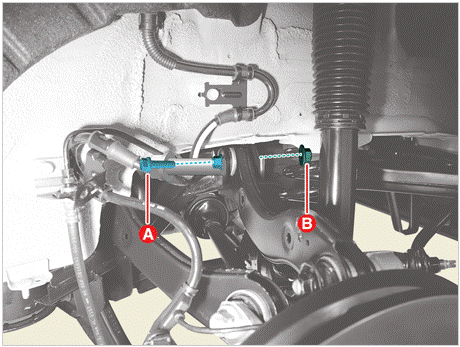

- Remove the rear upper arm - rear bolt (A) and nut (B).
Tightening torque:
156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)
NOTE:- Install the transmission jack and lift up the parts to prevent the bolts and nuts from damage when installing or removing.
- Mark and remove all bolts and nuts to prevent incorrectly positioned installation.
Information
Hold the bolt and remove or install the nut.

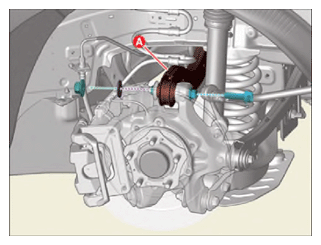

- Remove the rear upper arm - rear (A) after removing the bolt, nut, and washer.
Tightening torque:
156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)
NOTE:- Install the transmission jack and lift up the parts to prevent the bolts and nuts from damage when installing or removing.
- Mark and remove all bolts and nuts to prevent incorrectly positioned installation.
Information
Hold the bolt and remove or install the nut.
