Rear Upper Arm - Front

Remove the rear cross member.
(Refer to Rear Suspension System - "REAR CROSS MEMBER ")

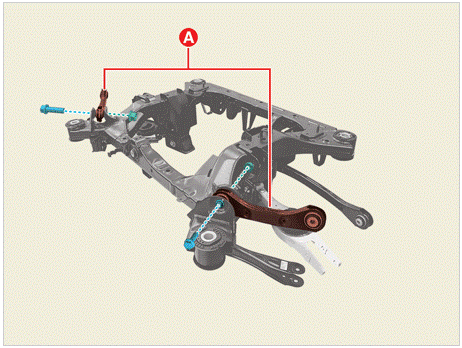

Remove the rear upper arm - front (A) after removing the bolt and nut.
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Mark and remove all bolts and nuts to prevent incorrectly positioned installation.

Information

Hold the bolt and remove or install the nut.
