Rear Stabilizer Bar Link

  1. Remove the rear wheel and tires.

    (Refer to Tires/Wheels - " WHEEL  ")

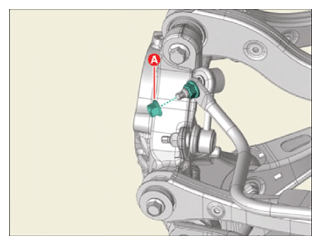

  2. Remove the rear stabilizer bar link nut (A).

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G15814560Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Hold the rear stabilizer bar link outer hex (A), and then remove or install the nut (B).
      G15814561Courtesy of KIA MOTORS AMERICA, INC.
    • Be careful not to damage the boot of the link.
    • Use a hand tool when removing or installing the rear stabilizer bar link nut.

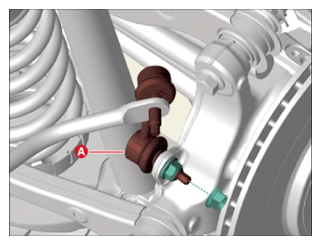

  3. Remove the rear stabilizer bar link (A) after removing the nut.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G15814562Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

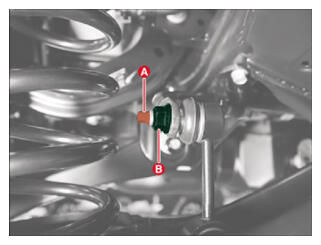

  • Hold the rear stabilizer bar link outer hex (A), and then remove or install the nut (B).
    G15814563Courtesy of KIA MOTORS AMERICA, INC.
  • Be careful not to damage the boot of the link.
  • Use a hand tool when removing or installing the rear stabilizer bar link nut.
