Removal And Installation: Installation

  1. Install in the reverse order of removal.
    NOTE: When tightening the nut, align the center of the bolt plate scale with the center of the guide.

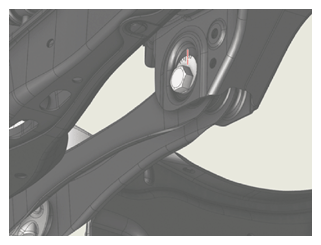

    [Rear Assist Arm]
    G15814579Courtesy of KIA MOTORS AMERICA, INC.

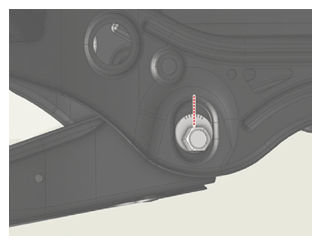

    [Rear Lower Arm]
    G15814580Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the alignment.

    (Refer to Alignment - " REPAIR PROCEDURES  ")
