Removal And Installation: Installation
- Install in the reverse order of removal.NOTE:

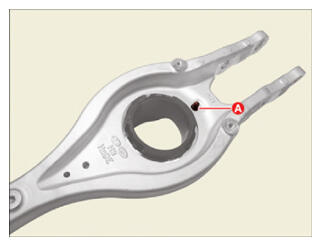

- After installation, check the protrusion (A) on the top of the rear lower arm and reinstall the lower arm pad if the protrusion (A) is not fully exposed.

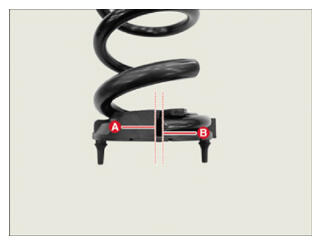

- When installing the rear coil spring, mount it so that the surface (A) of the lower pad of the spring and the end of the spring (B) contact as much as possible.
Maximum allowable gap:
3 mm (0.1181 in.)
- After installation, check the protrusion (A) on the top of the rear lower arm and reinstall the lower arm pad if the protrusion (A) is not fully exposed.
- Check the alignment.
(Refer to Alignment - " REPAIR PROCEDURES ")
