Removal And Installation: Removal

WARNING: If a transmission jack is used with a two-post lift, do not lift the vehicle too much. The center gravity of the vehicle may change and fall.

Remove the rear wheel and tires.
(Refer to Tires/Wheels - " WHEEL ")
Remove the rear under cover.
(Refer to Motor and Reduction Gear System - " REAR UNDER COVER ")

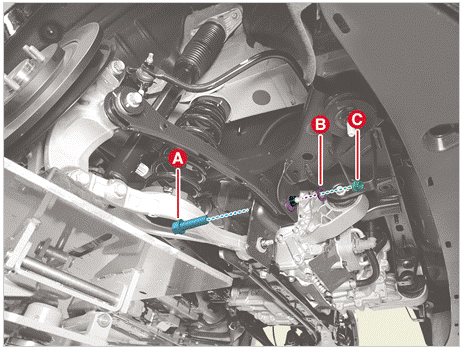

Remove the rear assist arm cam bolt (A), plate (B) and nut (C).

Tightening torque:

107.9 - 117.7 N.m (11.0 - 12.0 kgf.m, 79.6 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Install the transmission jack and lift up the parts to prevent the bolts and nuts from damage when installing or removing.
Be careful not to change the bolt, nut and plate installing position.

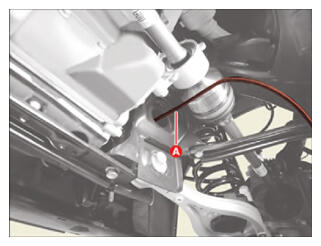

Use a tool such as the magnetic pickup tool (A) to pick up the cam bolt after removing the cam bolt.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Hold the bolt and remove or install the nut.

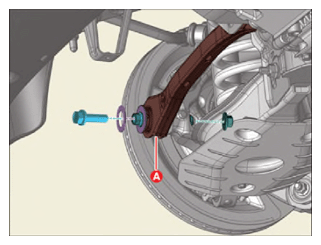

Remove the rear assist arm (A) after removing the bolt, washer and nut.
Tightening torque:

117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb.ft)
