Components And Components Location: Component

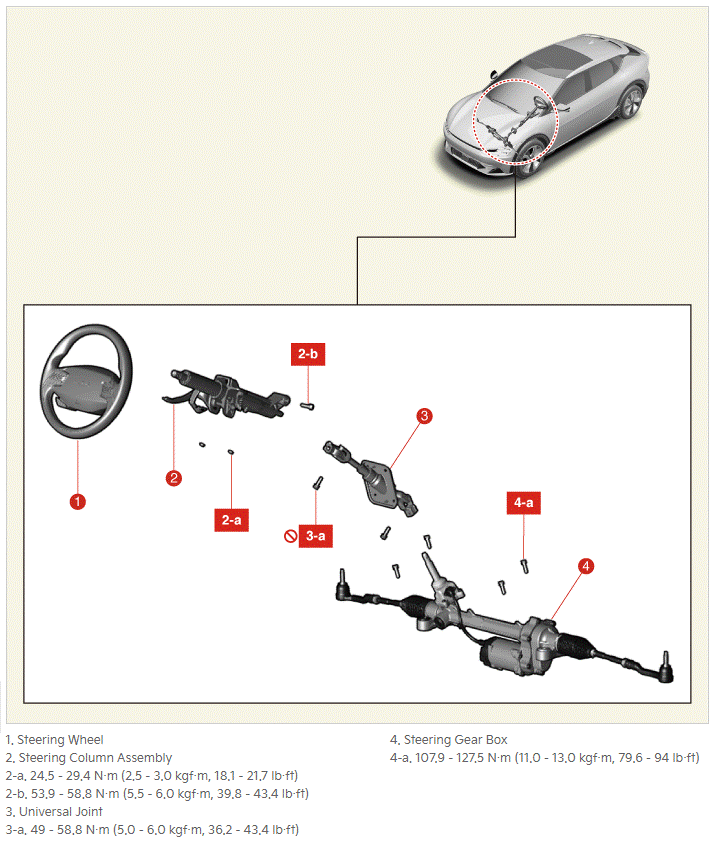

Fig 1: Universal Joint Assembly Components Location With Torque Specification

G15814694

Courtesy of KIA MOTORS AMERICA, INC.
