Tie Rod End

(Refer to Suspension System - " WHEEL  ")

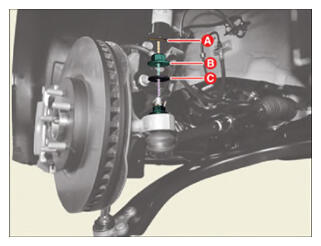

1. Remove the split pin (A).
2. Remove the lock nut (B), and washer (C).

   Tightening torque:

   98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • Do not reuse the split pin.
   • Do not reuse the lock nut.
   • Be careful not to damage the boot of the link.
   • Always use hand tools when removing and installing the lock nut.

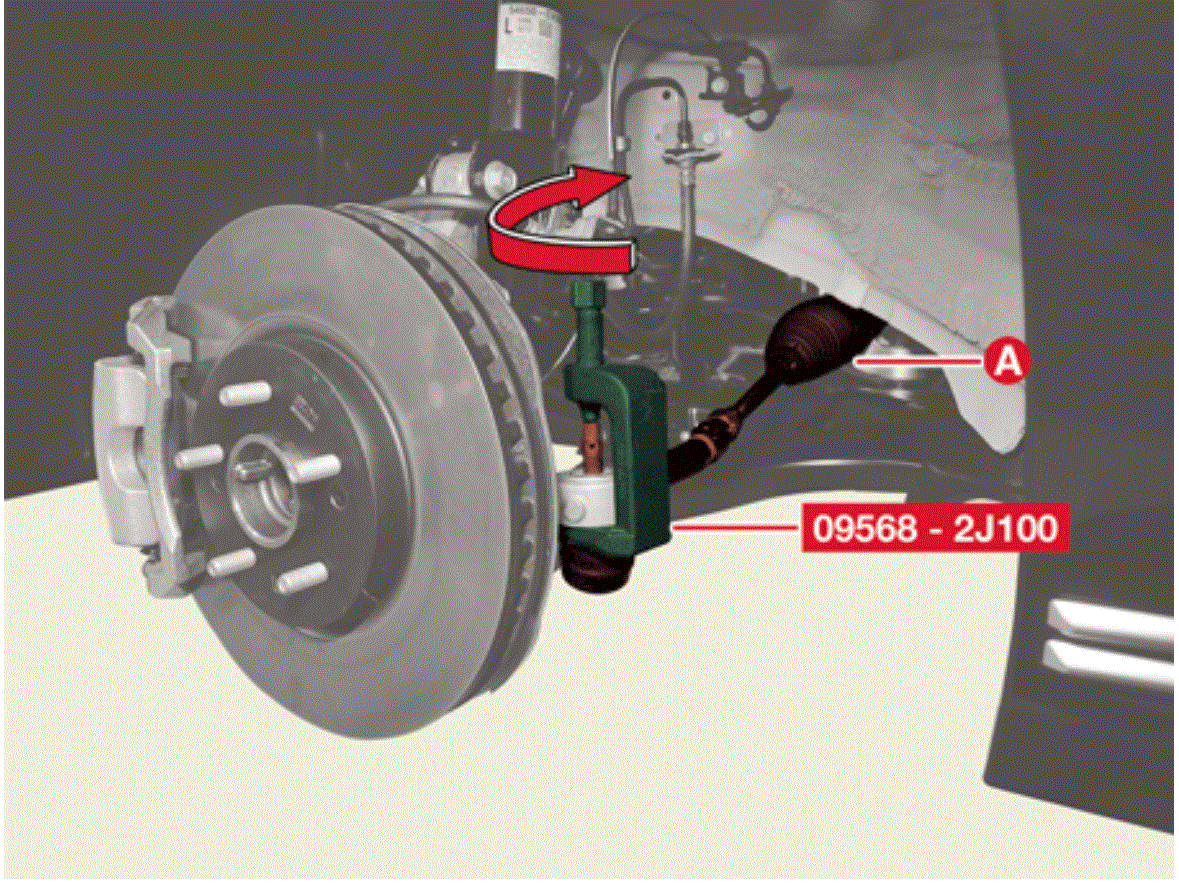

3. Separate the tie rod end ball joint (A) using SST (09568 - 2J100).

Courtesy of KIA MOTORS AMERICA, INC.

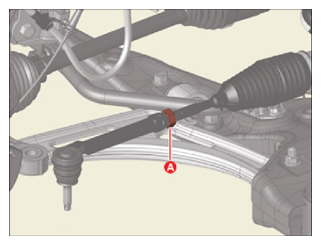

Pre-tightening torque:

2.9 - 9.8 N.m (0.3 - 1.0 kgf.m, 2.2 - 7.2 lb.ft)

Tightening torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

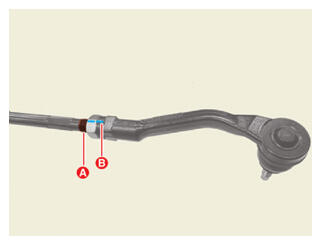

Courtesy of KIA MOTORS AMERICA, INC.

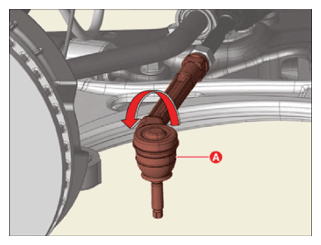

Courtesy of KIA MOTORS AMERICA, INC.
