Removal And Installation: Installation
- Install in the reverse order of removal.NOTE:
- Tighten the bolts and nuts to the specified torque.

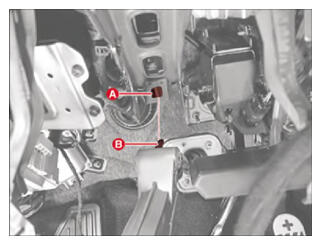

- When assembling the steering column, insert the dowel pin (A) well into the MDPS bracket groove (B).
- Tighten the steering gear joint by firmly inserting it into the steering gearbox pinion shaft during installation.
- Make sure that the head of the universal joint mounting bolt is mounted facing the driver.
- Perform the Steering Angle Sensor (SAS) Calibration.
(Refer to Motor Power Steering System - " ADJUSTMENT ")
