Disassembly And Reassembly: Reassembly

  1. Reassemble in the reverse order of disassembly.
    NOTE:
    • Tighten the bolts and nuts to the specified torque.

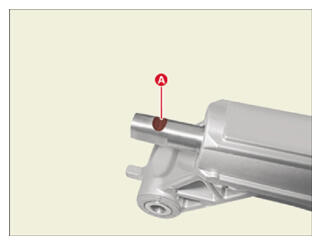

    • Make sure that the mounting bolt groove (A) is aligned when assembling.
      G15814691Courtesy of KIA MOTORS AMERICA, INC.

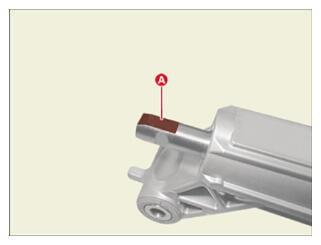

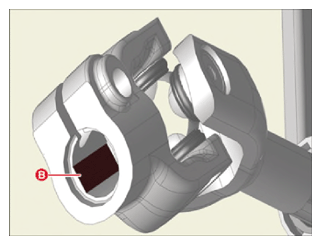

    • Match the column assembly face (A) with the joint assembly face (B) when assembling.
    G15814692Courtesy of KIA MOTORS AMERICA, INC.
G15814693Courtesy of KIA MOTORS AMERICA, INC.
