Home >> Kia >> 2024 >> EV6 Light >> Repair and Diagnosis >> Steering >> Electronic Steering >> MOTOR DRIVEN POWER STEERING (MDPS) (2WD / 70kW+160kW AWD) >> MDPS Column And Housing >> Components And Components Location >> Component

Components And Components Location: Component

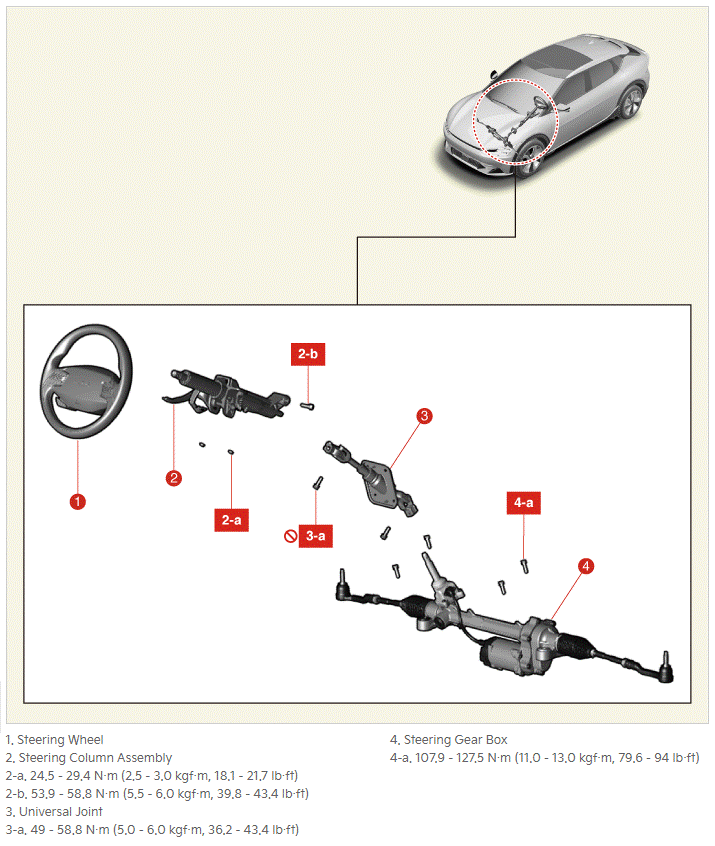

Fig 1: MDPS Column And Housing Components Location With Torque Specification

G15814683

Courtesy of KIA MOTORS AMERICA, INC.
