Components And Components Location: Component

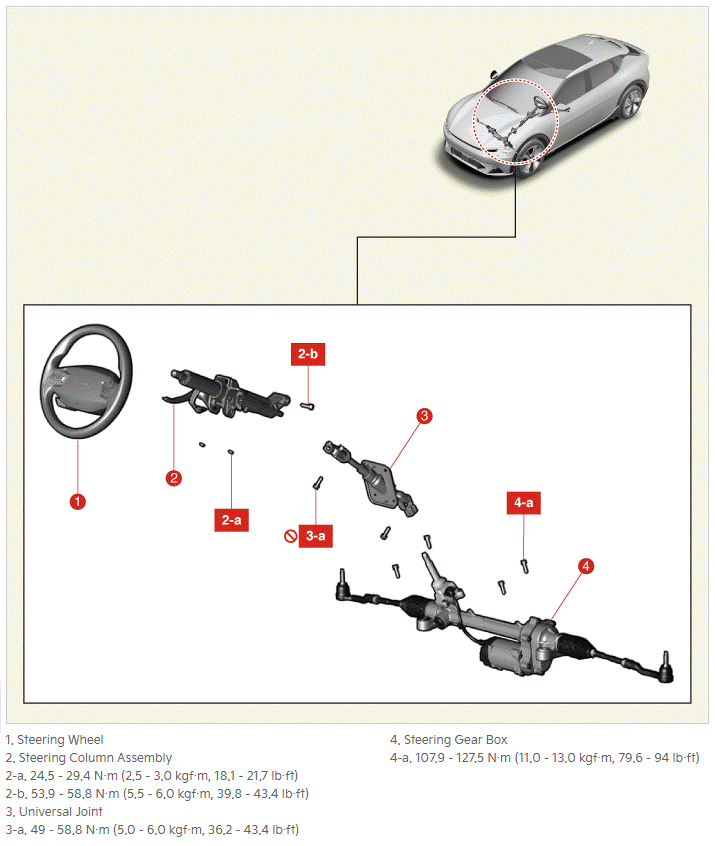

Fig 1: Motor Driven Power Steering Components Location With Torque Specification

G15814672

Courtesy of KIA MOTORS AMERICA, INC.
