Phase Resistance
- Remove the rear high voltage junction box.
(Refer to Battery Control System - " REAR HIGH VOLTAGE JUNCTION BOX REMOVAL AND INSTALLATION ")
- Remove the multi inverter assembly.
(Refer to Battery Control System - " MULTI INVERTER ASSEMBLY REMOVAL AND INSTALLATION ")

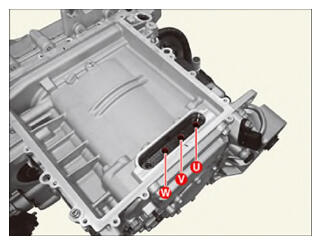

- Check the resistance of each line (U, V, W) using a multi-ohm meter.
Item Inspection area Specifications Remark Phase resistance (Line - Line) U - V 57.48 - 63.52 mΩ Reference temperature: 20 - 20.08°C (68 - 68.1°F) V - W W - U
