Insulation Resistance

  1. Remove the rear high voltage junction box.

    (Refer to Battery Control System - " REAR HIGH VOLTAGE JUNCTION BOX REMOVAL AND INSTALLATION  ")

  2. Remove the multi inverter assembly.

    (Refer to Battery Control System - " MULTI INVERTER ASSEMBLY REMOVAL AND INSTALLATION  ")

  3. Using an insulation resistance tester and check insulation resistance.

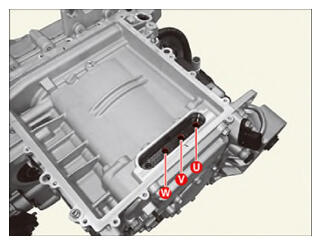

    1. Connect the (-) terminal of the insulation resistance tester to the housing, (+) terminal, and 3-phase (U, V, W).
    2. Supply the DC 1, 000 V voltage through insulation resistance tester and then wait about 1 minute to measure the stable resistance value.
      G15815996Courtesy of KIA MOTORS AMERICA, INC.
      Item Inspection area Specifications Remark
      Insulation resistance Housing - U 100 MΩ or more DC 1, 000 V, 1 minute
      Housing - V
      Housing - W
