Dielectric Strength

  1. Remove the rear high voltage junction box.

    (Refer to Battery Control System - " REAR HIGH VOLTAGE JUNCTION BOX  ")

  2. Remove the multi inverter assembly.

    (Refer to Battery Control System - " MULTI INVERTER ASSEMBLY  ")

  3. Using a withstanding voltage tester check leakage current.

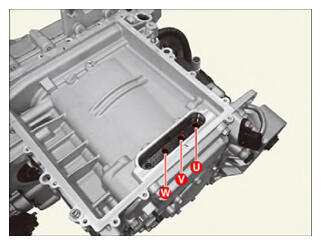

    1. Connect the (-) terminal of the withstand voltage tester to the housing and the (+) terminal to the 3-phase (U, V, W).
    2. Check the measured value by applying AC 2, 200 V for one minute.
G15815997Courtesy of KIA MOTORS AMERICA, INC.
Item Inspection area Specifications Remark
Dielectric strength Housing - U 18 mA or less AC 2, 200 V, 1minute
Housing - V
Housing - W
