Front Rear Under Cover

Information

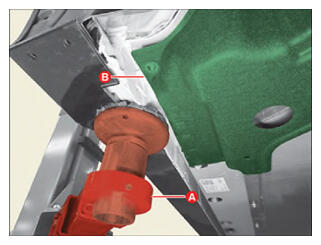

When installing the lift jack, verify that the lift jack (A) and the front rear under cover (B) interfere.

Courtesy of KIA MOTORS AMERICA, INC.

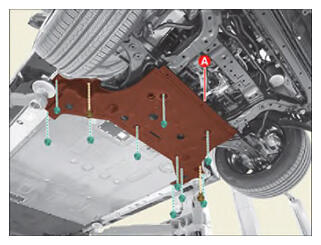

1. Remove the front rear under cover (A) after removing fasteners and nuts.

   Tightening torque:

   7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.
