Phase Resistance
- Remove the front high voltage junction box.
(Refer to Battery Control System - " FRONT HIGH VOLTAGE JUNCTION BOX ")
- Remove the inverter assembly.
(Refer to Battery Control System - " INVERTER ASSEMBLY - 4WD REMOVAL AND INSTALLATION ")

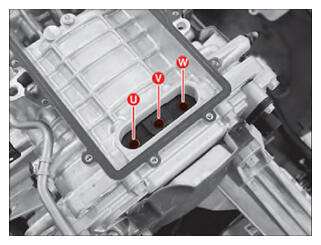

- Check the resistance of each line (U, V, W) using a multi-ohm meter.
Item Inspection part Specifications Remark Phase resistance (Line - Line) U - V 168.63 - 186.37 mΩ Reference temperature: 20°C (68°F) V - W W - U
