Height Sensor

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to Battery Control System - " AUXILIARY BATTERY (12 V) (2WD)  ")

    (Refer to Battery Control System - " AUXILIARY BATTERY (12 V) (4WD)  ")

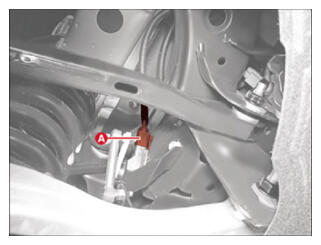

  2. Disconnect the height sensor connector (A).
    G15812621Courtesy of KIA MOTORS AMERICA, INC.

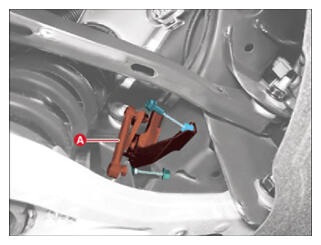

  3. Remove the height sensor (A) after removing the bolt and nut.
G15812622Courtesy of KIA MOTORS AMERICA, INC.
