Crash Pad Upper Panel

Remove the cluster.
(Refer to Body Electrical System - " CLUSTER - REMOVAL AND INSTALLATION ")

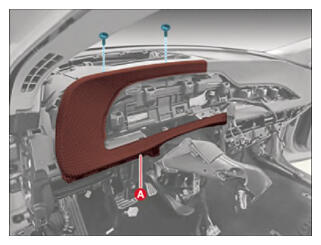

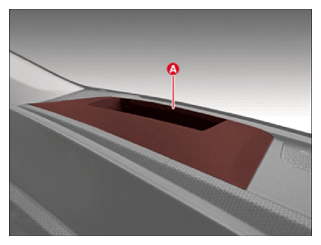

Remove the head up display cover (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

IMPORTANT:

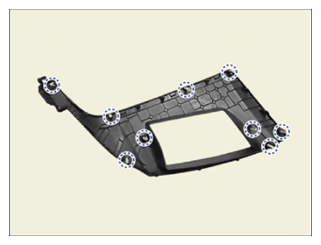

Clip position:

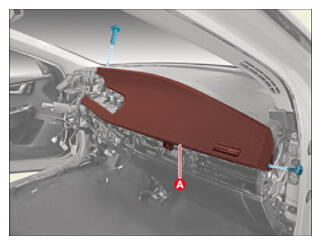

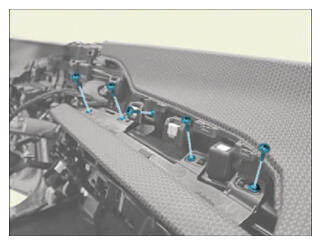

Remove the crash pad upper panel (A) after removing the screws.

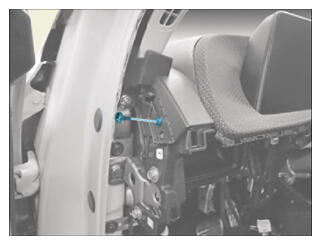

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
