Crash Pad Center Panel

  1. Remove the crash pad lower panel.
  2. Remove the glove box housing.

    (Refer to Crash Pad -  "GLOVE BOX ")

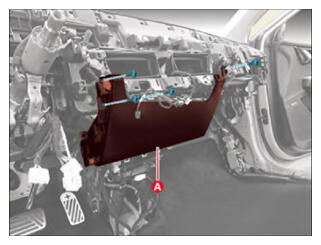

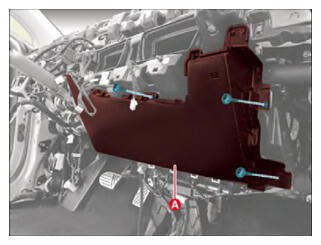

  3. Remove the crash pad center panel (A) after removing the screws.
G15811940Courtesy of KIA MOTORS AMERICA, INC.
G15811941Courtesy of KIA MOTORS AMERICA, INC.
